T3478018U

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Primary Material	Shell Finish	Orientation	Ingress Protection	Connector Type	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Mating	Shell Size - Insert	Number of Positions	Shielding	Voltage Rating	Mounting Type	Features
Amphenol Tuchel Industrial T3478100U	Silver	Metal	Nickel	Keyed	IP40	Receptacle Female Sockets	Die Cast	100 °C	-40 °C	7 A	Silver	M16-7	7	Shielded	250 VDC
Amphenol Tuchel Industrial T3478000U	Silver	Metal	Nickel	Keyed	IP40	Receptacle Female Sockets	Die Cast	100 °C	-40 °C	7 A	Silver	M16-7	7	Shielded	250 VDC
Amphenol Tuchel Industrial T3475018U	Silver	Metal	Nickel	Keyed	IP40	Male Pins Plug	Die Cast	100 °C	-40 °C	7 A	Gold	M16-7	7	Shielded	250 VDC	Free Hanging (In-Line)	Strain Relief
Amphenol Tuchel Industrial T3478018U	Silver	Metal	Nickel	Keyed	IP40	Receptacle Female Sockets	Die Cast	100 °C	-40 °C	7 A	Gold	M16-7	7	Shielded	250 VDC
Amphenol Tuchel Industrial T3477000U	Silver	Metal	Nickel	Keyed	IP40	Male Pins Receptacle	Die Cast	100 °C	-40 °C	7 A	Silver	M16-7	7	Shielded	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

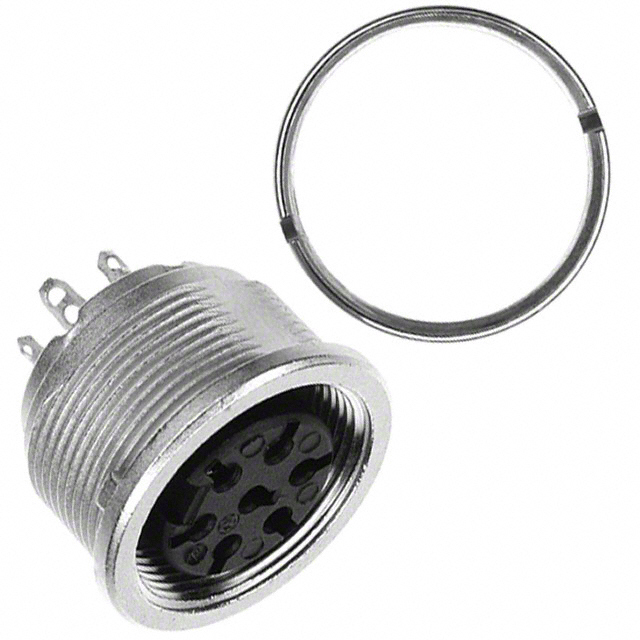

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources
