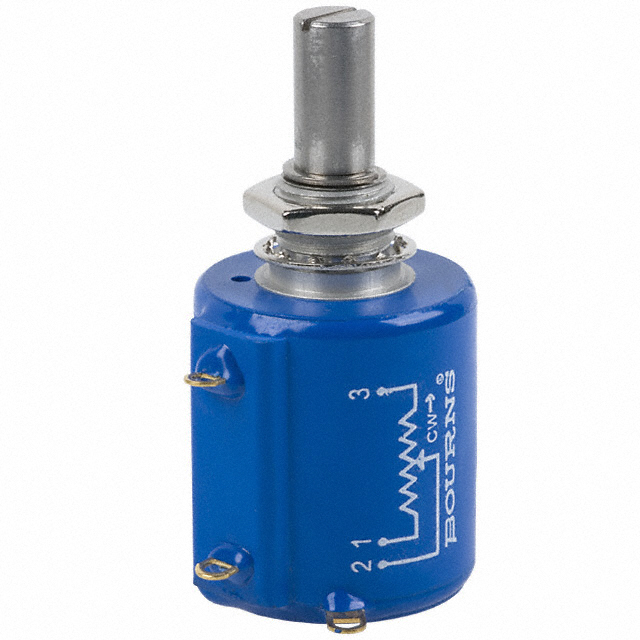

3500S-2-204L

Active

Bourns Inc.

RES WIREWOUND POT 200K OHM 3% 2W 10(ELEC)/10(MECH)TURNS 6.34MM (22.23 X 46.04MM) SOLDER LUG PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3500S-2-204L

Active

Bourns Inc.

RES WIREWOUND POT 200K OHM 3% 2W 10(ELEC)/10(MECH)TURNS 6.34MM (22.23 X 46.04MM) SOLDER LUG PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3500S-2-204L

Actuator Length [z]	0.813 in
Actuator Length [z]	20.64 mm
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	10
Power (Watts)	2 W
Resistive Material	Wirewound
Rotation	3600 °
Size - Body [diameter]	22.23 mm
Size - Body [diameter]	0.875 "
Taper	Linear
Temperature Coefficient	50 ppm/°C
Termination Style	Solder Lug
Tolerance	3 %

3500S Series

Part	Resistance (Ohms)	Number of Turns	Bushing Thread	Taper	Resistive Material	Number of Gangs	Adjustment Type	Actuator Type	Power (Watts)	Rotation	Termination Style	Actuator Length [z]	Actuator Length [z]	Size - Body [diameter]	Size - Body [diameter]	Tolerance	Temperature Coefficient	Resistance (Ohms)	Actuator Length [z]
Bourns Inc. 3500S-2-104L	100 kOhms	10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C
Bourns Inc. 3500S-2-203L	20 kOhms	10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C
Bourns Inc. 3500S-2-202L		10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C	2k
Bourns Inc. 3500S-2-502	5 kOhms	10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C
Bourns Inc. 3500S-1-502L	5 kOhms	10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug		0.687 in	22.23 mm	0.875 "	3 %	50 ppm/°C		17.46 mm
Bourns Inc. 3500S-2-201L	200 Ohms	10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C
Bourns Inc. 3500S-2-204L		10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C
Bourns Inc. 3500S-2-102	1 kOhms	10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C
Bourns Inc. 3500S-2-503L	50 kOhms	10	3/8-32	Linear	Wirewound	1	User Defined	Slotted	2 W	3600 °	Solder Lug	0.813 in	20.64 mm	22.23 mm	0.875 "	3 %	50 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 133.56
		10	$ 120.21
		25	$ 103.51
		50	$ 96.83
		100	$ 90.15

Description

General part information

3500S Series

200k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 2W Solder Lug
