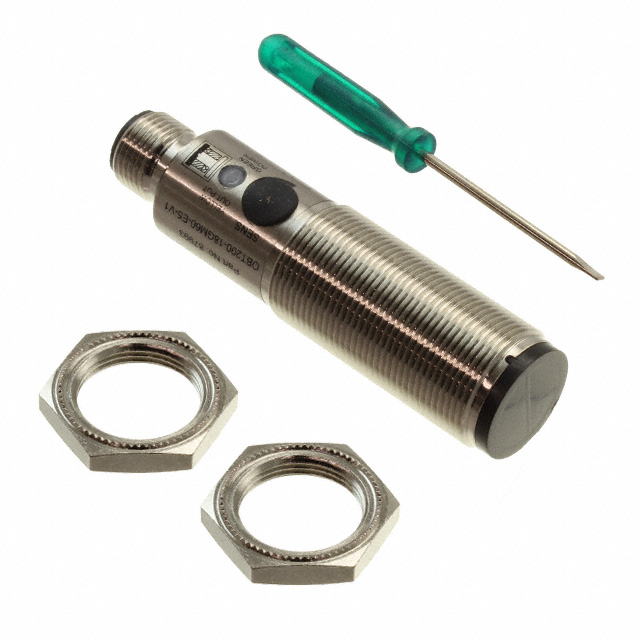

OBT200-18GM60-E5-V1

Obsolete

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Search across all available documentation for this part.

Obsolete

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Technical Specifications

Parameters and characteristics for this part

Specification	OBT200-18GM60-E5-V1

Adjustment Type	Adjustable
Connection Method	Connector, M12
Ingress Protection	IP67
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	PNP - Open Collector, Light-ON\Dark-ON
Response Time	1 ms
Sensing Distance	200 mm, 0 mm
Sensing Distance [Max]	7.874 in
Sensing Distance [Min]	0 "
Sensing Method	Diffuse
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Method	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Adjustment Type	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance [Max]	Sensing Distance [Min]	Connection Method	Ingress Protection	Light Source
PEPPERL+FUCHS OBT200-18GM60-E5-V1	Diffuse	1 ms	55 °C	-25 °C	Adjustable	PNP - Open Collector Light-ON\Dark-ON	30 VDC	10 VDC	0 mm 200 mm	7.874 in	0 "	Connector M12	IP67	Infrared

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diffuse Optical Sensor 0.000" ~ 7.874" (0mm ~ 200mm) PNP - Open Collector, Light-ON\Dark-ON
