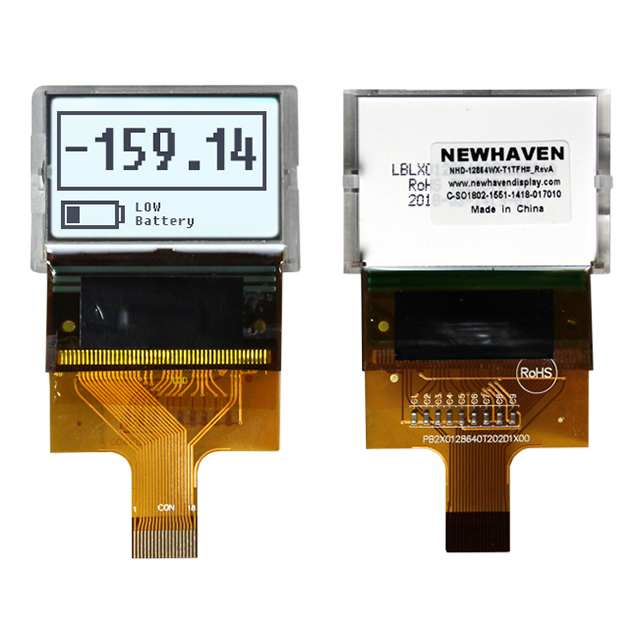

NHD-12864WX-T1TFH#

Obsolete

Newhaven Display Intl

LCD MOD GRAPHIC 128X64 TRANSFL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Solvent Precautions +1

NHD-12864WX-T1TFH#

Obsolete

Newhaven Display Intl

LCD MOD GRAPHIC 128X64 TRANSFL

Deep-Dive with AI

DocumentsDatasheet LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-12864WX-T1TFH#

Background Color	White
Backlight	LED - White
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.2 mm
Dot Pitch [y]	0.2 mm
Dot Pixels [x]	128
Dot Pixels [y]	64
Dot Size [x]	0.18 mm
Dot Size [y]	0.23 mm
Graphics Color	Black
Interface	Parallel/Serial
Viewing Area [x]	29.58 mm
Viewing Area [y]	17.98 mm

NHD-12864 Series

Part	Interface	Display Mode	Dot Size [custom]	Dot Size [custom]	Display Type	Dot Pitch [x]	Dot Pitch [y]	Backlight	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [x]	Viewing Area [y]	Dot Size [x]	Dot Size [y]	Controller Type	Graphics Color	Background Color	Background Color	Viewing Area [custom]	Viewing Area [custom]	Dot Size [z]
Newhaven Display Intl NHD-12864AZ-NSW-BBW	Parallel 8-Bit	Transmissive	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm	LED - White	64	128	72 mm	40 mm
Newhaven Display Intl NHD-12864WG-BTGH-T#N	Parallel 8-Bit	Transflective			STN - Super-Twisted Nematic	0.43 mm	0.43 mm	LED - White	64	128	60 mm	31.26 mm	0.39 mm	0.39 mm	KS0108
Newhaven Display Intl NHD-12864WG-FTGH-VZ#	Parallel 8-Bit	Transflective	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm	LED - White	64	128	72 mm	40 mm			T6963C	Blue	Gray
Newhaven Display Intl NHD-12864AZ-FL-GBW	Parallel 8-Bit	Transflective	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm		64	128	72 mm	40 mm			KS0108
Newhaven Display Intl NHD-12864WG-BTMI-V#N	Parallel 8-Bit	Transmissive			STN - Super-Twisted Nematic	0.43 mm	0.43 mm	LED - White	64	128	60 mm	31.26 mm	0.39 mm	0.39 mm	KS0108
Newhaven Display Intl NHD-12864WG-FTMI-VZ#	Parallel 8-Bit	Transmissive	0.48 mm	0.48 mm	STN - Super-Twisted Nematic	0.52 mm	0.52 mm	LED - White	64	128	72 mm	40 mm			T6963C	Blue White	Blue	White
Newhaven Display Intl NHD-12864MZ-FSW-GBW-L	Parallel 8-Bit	Transflective			STN - Super-Twisted Nematic	0.39 mm	0.49 mm	LED - White	64	128			0.35 mm	0.45 mm	KS0108				54 mm	36 mm
Newhaven Display Intl NHD-12864WG-BTFH-V#N	Parallel 8-Bit	Transflective			FSTN - Film Super-Twisted Nematic	0.43 mm	0.43 mm	LED - White	64	128	60 mm	31.26 mm	0.39 mm	0.39 mm	KS0108
Newhaven Display Intl NHD-12864WX-T1TFH#	Parallel/Serial	Transflective			FSTN - Film Super-Twisted Nematic	0.2 mm	0.2 mm	LED - White	64	128	29.58 mm	17.98 mm	0.18 mm	0.23 mm		Black	White
Newhaven Display Intl NHD-12864WG-CTFH-V#N	Parallel 8-Bit	Transflective			FSTN - Film Super-Twisted Nematic	0.44 mm	0.6 mm	LED - White	64	128	62 mm	44 mm		0.42 mm	KS0108						0.58 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-12864 Series

Graphic LCD Display Module Transflective Black FSTN - Film Super-Twisted Nematic Parallel/Serial 128 x 64

NHD-12864WX-T1TFH#

Deep-Dive with AI

NHD-12864WX-T1TFH#

Deep-Dive with AI

Technical Specifications

NHD-12864 Series

Pricing

Description

NHD-12864 Series

Documents

Datasheet

LCD Solvent Precautions

LCD Safe Handling Procedure

NHD-12864 Series
