TLR2ATTD6L00F

Active

KOA Speer Electronics, Inc.

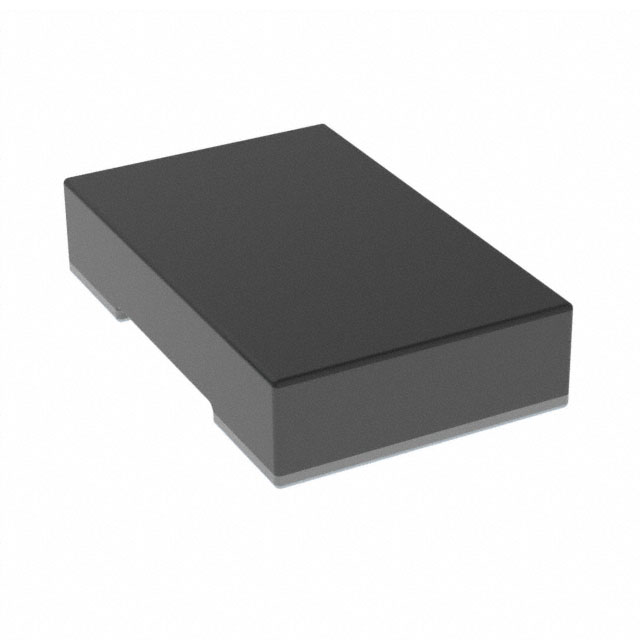

RES 0.006 OHM 1% 1W 0805

Search across all available documentation for this part.

Active

KOA Speer Electronics, Inc.

RES 0.006 OHM 1% 1W 0805

Technical Specifications

Parameters and characteristics for this part

Specification	TLR2ATTD6L00F

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max)	0.45 mm
Height - Seated (Max) [Max] [z]	0.018 "
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Package / Case	0805
Power (Watts)	1 W
Ratings	AEC-Q200
Resistance	6 mOhms
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

Part	Features	Composition	Number of Terminations	Ratings	Resistance	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Temperature Coefficient	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
KOA Speer Electronics, Inc. TLR2ATTD3L00F	Automotive AEC-Q200 Current Sense	Metal Element	2	AEC-Q200	3 mOhms	0805	155 °C	-65 ░C	1 W	100 ppm/°C	1 %	0.016 in	0.4 mm	2 mm	0.079 in	0.049 in	1.25 mm	0805
KOA Speer Electronics, Inc. TLR2ATTD6L00F	Automotive AEC-Q200 Current Sense	Metal Element	2	AEC-Q200	6 mOhms	0805	155 °C	-65 ░C	1 W	100 ppm/°C	1 %			2 mm	0.079 in	0.049 in	1.25 mm	0805	0.45 mm	0.018 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 mOhms ±1% 1W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Current Sense Metal Element
