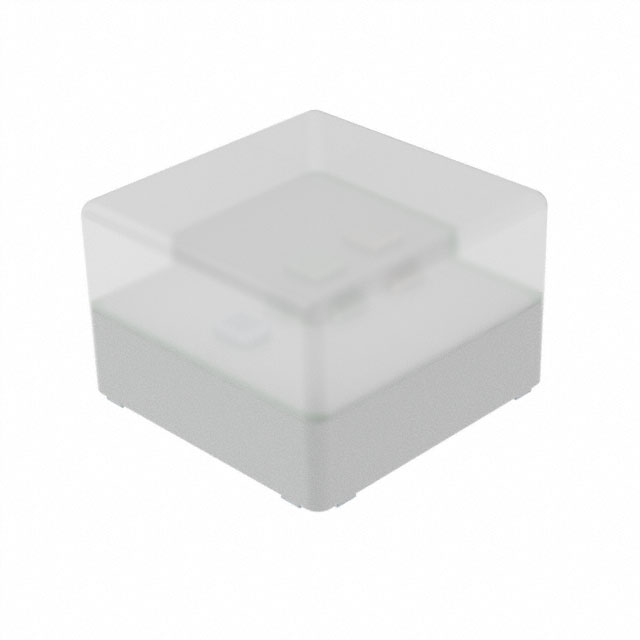

IN-B101FCH
ObsoleteInolux
LED RGB TOP VIEW SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IN-B101FCH
ObsoleteInolux
LED RGB TOP VIEW SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-B101FCH |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 10 mA |
| Current - Test [custom] | 10 mA |
| Current - Test [custom] | 10 mA |
| Lens Size | 1 mm |
| Lens Style | Square with Flat Top |
| Millicandela Rating [custom] | 17 mcd |
| Millicandela Rating [custom] | 85 mcd |
| Millicandela Rating [custom] | 58 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0404 |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V, 3.4 V, 2.4 V |
| Wavelength - Dominant | 621 nm, 531 nm, 470 nm |
| Wavelength - Peak [custom] | 629 nm |
| Wavelength - Peak [custom] | 520 nm |
| Wavelength - Peak [custom] | 480 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IN-B101 Series
Red, Green, Blue (RGB) 621nm Red, 531nm Green, 470nm Blue LED Indication - Discrete 2.4V Red, 3.4V Green, 3.4V Blue 0404 (1010 Metric)
