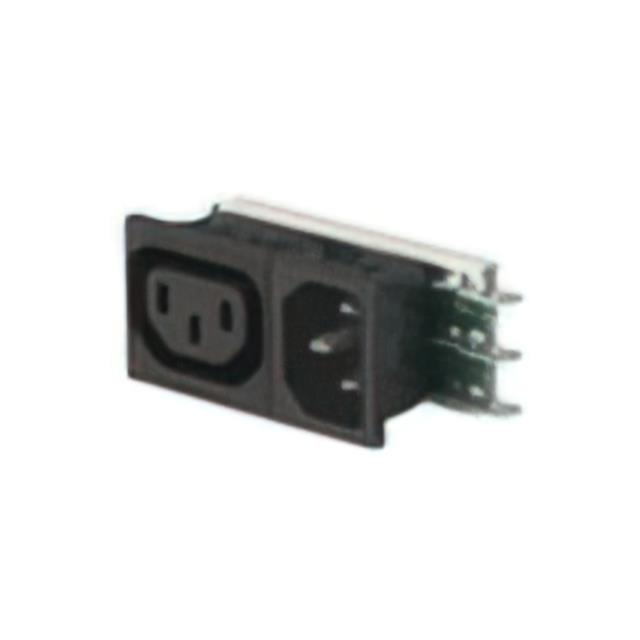

6422.0051.15

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	6422.0051.15

Accomodates a Fuse	False
Approval Agency	UL, ENEC, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	46.7 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Switch Features	Switch On-Off
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Material Flammability Rating	Panel Thickness [custom]	Panel Thickness [custom]	Accomodates a Fuse	Voltage Rating - Appliance Inlet	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Termination	Switch Features	Connector Style	Approval Agency	Current Rating - Appliance Inlet
SCHURTER Inc. 6422.0051.15	Unfiltered - Commercial	UL94 V-0	0.059 in	1.5 mm		250 VAC	Panel Mount Snap-In	27.6 mm	46.7 mm	Receptacle Male Blades - Module	Solder Eyelet	Switch On-Off	IEC 320-C14	CSA ENEC UL	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 58.09

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
