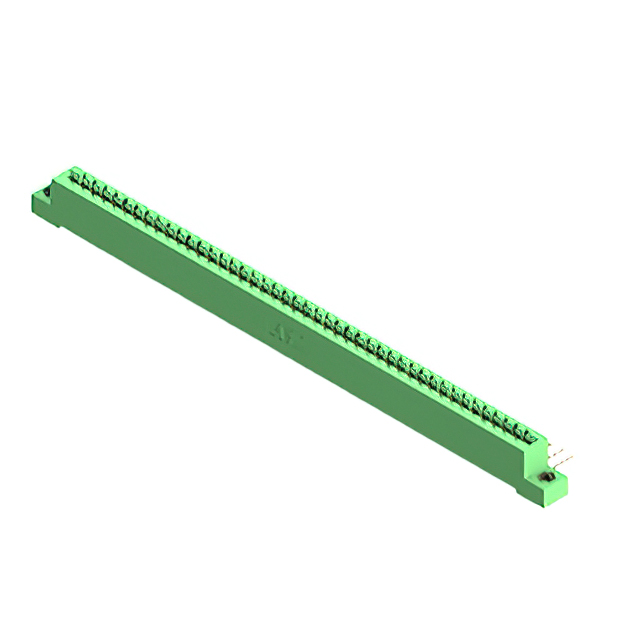

837-043-559-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 43POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-043-559-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 43POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-043-559-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 43 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
837-043 Series
...
| Part | Termination Rows | Read Out | Termination | Contact Finish | Contact Type | Pitch [x] | Pitch [x] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Gender | Number of Rows | Material - Insulation | Contact Material | Number of Positions/Bay/Row [custom] | Number of Positions | Mounting Type | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | ||||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | 0.156 in | 3.96 mm | ||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | ||||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | ||||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | ||||
EDAC Inc. | 1 | Single | Wire Wrap | Gold | Cantilever | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | ||||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | |||||
EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 76.72 | |
Description
General part information
837-043 Series
43 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
