PTGL12AS4R7K6B51A0

Obsolete

Murata Power Solutions Inc.

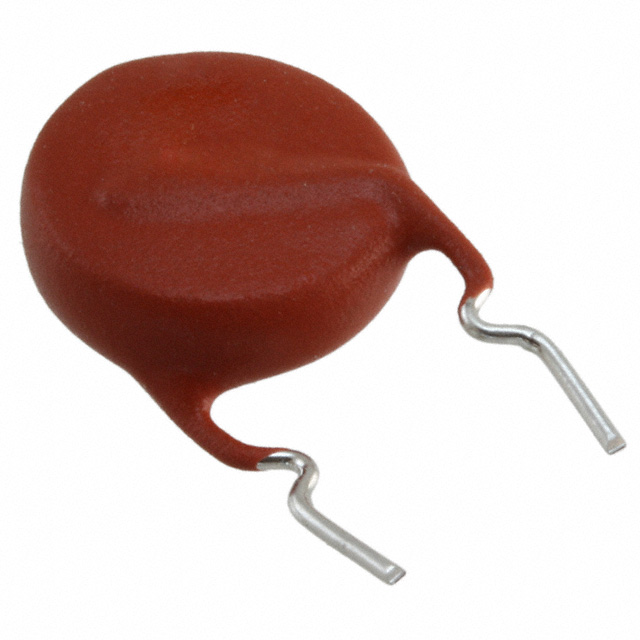

PTC RESET FUSE 140V 393MA RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 140V 393MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Lead Spacing	Lead Spacing	Resistance - 25°C (Typ)	Voltage - Max [Max]	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Approval Agency	Type	Mounting Type	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]
Murata Power Solutions Inc. PTGL12AS0R8K2B51B0	5 mm	0.197 in	800 mOhms	30 V	7 A	16.5 mm	16.51 mm	-30 ░C	85 °C	Disc Radial	UL	Ceramic	Through Hole	867 mA
Murata Power Solutions Inc. PTGL12AS4R7K6B51A0	5 mm	0.197 in	4.7 Ohms	140 V	3.5 A	16.5 mm	16.51 mm	-30 ░C	85 °C	Disc Radial		Ceramic	Through Hole	393 mA	523 mA	4.5 mm	0.453 "	11.5 mm	0.177 in
Murata Power Solutions Inc. PTGL12AS1R2K3B51A0	5 mm	0.197 in	1.2 Ohms	51 V	5 A	16.5 mm	16.51 mm	-30 ░C	85 °C	Disc Radial	UL	Ceramic	Through Hole	749 mA	996 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ceramic PTC Resettable Fuse 140V 393 mA Ih Through Hole Radial, Disc
