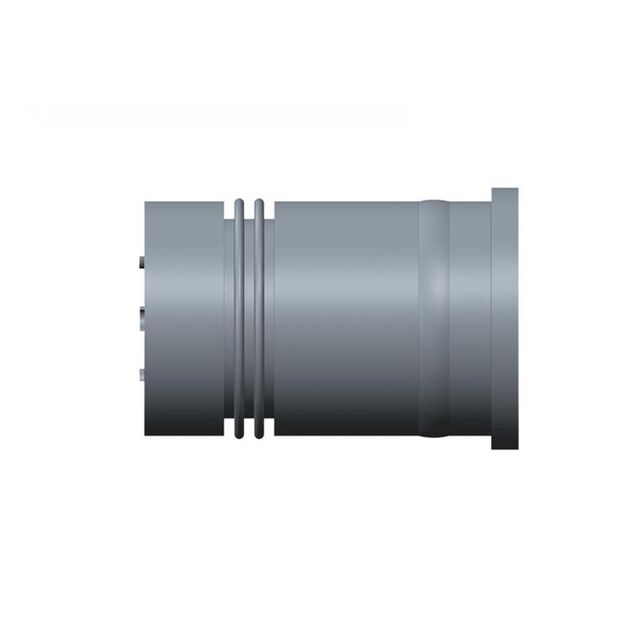

SLD-D004001

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 04 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, ACCESSORY, 4A, 04 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	SLD-D004001

Color	Black
Connector Type	Insert, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-4
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Contact Material	Fastening Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Finish - Mating	Shielding	Voltage Rating	Number of Positions	Shell Size - Insert	Color	Mounting Type	Shell Material	Orientation	Connector Type	Current Rating (Amps)
Amphenol LTW SLD-D004001	Copper Alloy	Push-Pull	Plastic	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Gold	Unshielded	250 VDC	4	M12-4	Black	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	D	Insert Male Pins	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 2.41

General part information

4 Position Circular Connector Insert, Male Pins Solder Cup
