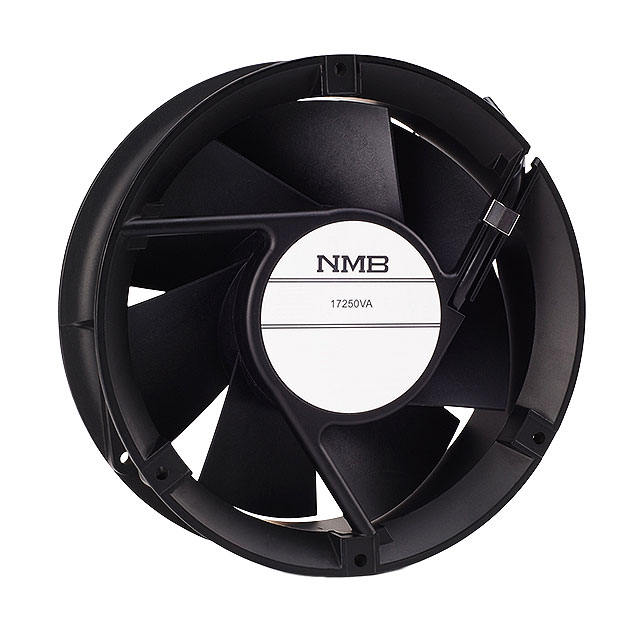

17250VA-48R-GA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 48 V, CIRCULAR, 172 MM, 50 MM, BALL BEARING, 346.08 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 48 V, CIRCULAR, 172 MM, 50 MM, BALL BEARING, 346.08 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	17250VA-48R-GA-00

Air Flow	9.69 m³/min
Air Flow	346.1 CFM
Bearing Type	Ball
Current Rating (Amps)	900 mA
Fan Type	Tubeaxial
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	62 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	43.2 W
RPM	4600 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172.7 mm
Static Pressure	1.25 in H2O
Static Pressure	312 Pa
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	52.8 VDC
Voltage Range [Min]	38 VDC
Weight	952.5 g
Weight	2.1 lb
Width [y]	2 "

Part	Approval Agency	Air Flow	Air Flow	Size / Dimension	Size / Dimension [diameter]	Voltage - Rated [custom]	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Static Pressure	Static Pressure	RPM	Current Rating (Amps)	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Noise	Fan Type	Width [y]	Termination	Power (Watts)	Material - Blade	Features	Weight	Weight	Ingress Protection	Voltage - Rated
NMB TECHNOLOGIES 17250VA-48R-EU-01	CE cULus VDE	9.69 m³/min	346.1 CFM	Round	172 mm	48 VDC	52.8 VDC	38 VDC	Ball	1.25 in H2O	312 Pa	4600 RPM	900 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C	100000 Hrs	62 dB(A)	Tubeaxial	2 "	4 Wire Leads	43.2 W	Plastic	Auto Restart PWM Control Speed Sensor (Tach)
NMB TECHNOLOGIES 17250VA-48R-GA-00		9.69 m³/min	346.1 CFM	Round	172.7 mm	48 VDC	52.8 VDC	38 VDC	Ball	1.25 in H2O	312 Pa	4600 RPM	900 mA	Aluminum	70 °C	70 °C	-10 °C	-10 °C		62 dB(A)	Tubeaxial	2 "	2 Wire Leads	43.2 W	Plastic		952.5 g	2.1 lb	IP69K - Dust Tight High Temp Water Jets Waterproof
NMB TECHNOLOGIES 17250VA-24R-GA-00		9.69 m³/min	346.1 CFM	Round	172.7 mm		26.4 VDC	18 VDC	Ball	1.25 in H2O	312 Pa	4600 RPM	1.8 A	Aluminum	70 °C	70 °C	-10 °C	-10 °C		62 dB(A)	Tubeaxial	2 "	2 Wire Leads	43.2 W	Plastic		952.5 g	2.1 lb	IP69K - Dust Tight High Temp Water Jets Waterproof	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.32
Newark	Each	1	$ 74.03

General part information

Fan Tubeaxial 48VDC Round - 172.7mm Dia Ball 346.1 CFM (9.69m³/min) 2 Wire Leads
