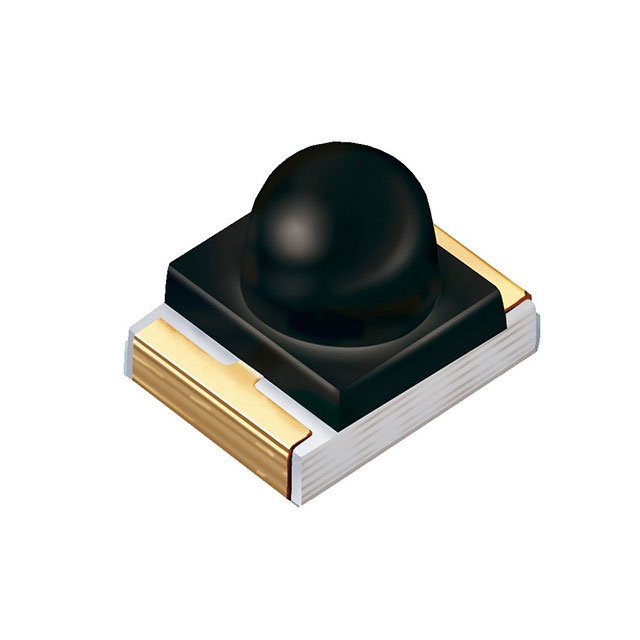

EAPST3224A0

Active

Everlight Electronics Co Ltd

PHOTOTRANSISTOR MODULE SILICON 940NM 2-PIN MINI-SMD T/R

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

PHOTOTRANSISTOR MODULE SILICON 940NM 2-PIN MINI-SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	EAPST3224A0

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	1210
Package / Case	3225 Metric
Power - Max [Max]	75 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Wavelength	Orientation	Current - Collector (Ic) (Max) [Max]
Everlight Electronics Co Ltd EAPST3224A0	-25 °C	85 °C	1210	3225 Metric	Surface Mount	30 V	100 nA	75 mW	940 nm	Top View	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Phototransistors 940nm Top View 1210 (3225 Metric)
