TST36RB01T

Active

ITT Cannon, LLC

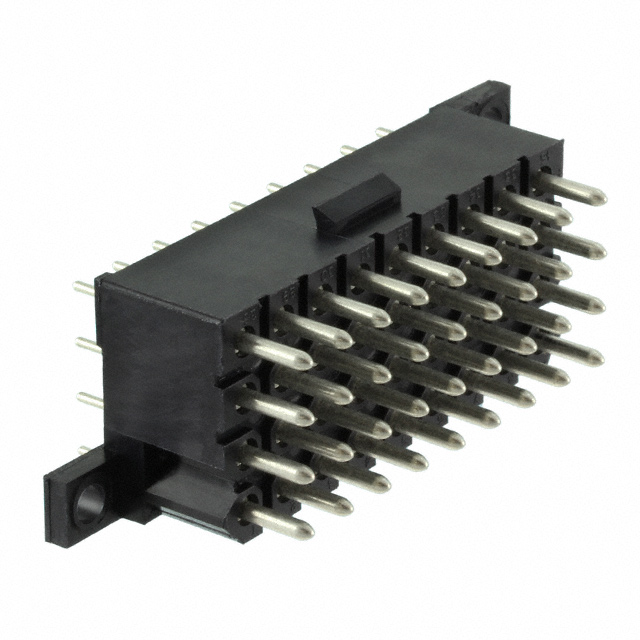

CONN HEADER VERT 36POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TST36RB01T

Active

ITT Cannon, LLC

CONN HEADER VERT 36POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST36RB01T

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Length - Post	0.224 "
Contact Length - Post	5.7 mm
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Black
Insulation Height	13.5 mm
Insulation Height	0.531 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

TST36 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Current Rating (Amps)	Voltage Rating	Insulation Material	Contact Type	Number of Positions	Contact Shape	Applications	Termination	Connector Type	Number of Positions Loaded	Shrouding	Features	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Style	Accessory Type	For Use With/Related Products	Color	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Contact Termination	Note	Contact Finish Thickness - Mating	Contact Finish - Mating
ITT Cannon, LLC TST36RB01T	5.08 mm	0.2 "	Black	13 A	250 VDC	Nylon Polyamide (PA)	Male Pin	36	Circular	Automotive Industrial	Solder	Receptacle	All	Unshrouded	Mounting Flange	Latch Holder	13.5 mm	0.531 in	0.224 "	5.7 mm	5.08 mm	0.2 in	UL94 V-0	-40 °C	105 ░C	Through Hole	Board to Cable/Wire
ITT Cannon, LLC TST36RB05T	5.08 mm	0.2 "	Black	13 A	250 VDC	Nylon Polyamide (PA)	Male Pin	36	Circular	Automotive Industrial	Solder	Receptacle	All	Unshrouded	Mounting Flange	Latch Holder	13.5 mm	0.531 in	0.224 "	5.7 mm	5.08 mm	0.2 in	UL94 V-0	-40 °C	105 ░C	Through Hole	Board to Cable/Wire
ITT Cannon, LLC TST36AH00								36																				Hood and Strain Relief	Trident Rectangular Plugs
ITT Cannon, LLC TST36RB06T	5.08 mm	0.2 "	Black			Nylon Polyamide (PA)	Female Socket	36	Circular	Automotive General Purpose	Solder	Receptacle	All		Mounting Flange	Latch Holder	13.5 mm	0.531 in	0.224 "	5.7 mm	5.08 mm	0.2 in	UL94 V-0	-40 °C	105 ░C	Through Hole	Board to Board Cable
ITT Cannon, LLC TST36RA00						Nylon Polyamide (PA)	Male or Female	36				Receptacle				Latch Holder								-55 °C	105 ░C	Panel Mount Snap-In				Black	5.08 mm	0.2 in	0.2 in	5.08 mm	Crimp and Solder	Contacts Not Included
ITT Cannon, LLC TST36RB02Z	5.08 mm	0.2 "	Black			Nylon Polyamide (PA)	Female Socket	36	Circular	Automotive General Purpose	Solder	Receptacle	All		Mounting Flange	Latch Holder	13.5 mm	0.531 in	0.224 "	5.7 mm	5.08 mm	0.2 in	UL94 V-0	-40 °C	105 ░C	Through Hole	Board to Board Cable										Flash	Gold
ITT Cannon, LLC TST36RB06Y	5.08 mm	0.2 "	Black			Nylon Polyamide (PA)	Female Socket	36	Circular	Automotive General Purpose	Solder	Receptacle	All		Mounting Flange	Latch Holder	13.5 mm	0.531 in	0.224 "	5.7 mm	5.08 mm	0.2 in	UL94 V-0	-40 °C	105 ░C	Through Hole	Board to Board Cable											Gold
ITT Cannon, LLC TST36RB02T	5.08 mm	0.2 "	Black			Nylon Polyamide (PA)	Female Socket	36	Circular	Automotive General Purpose	Solder	Receptacle	All		Mounting Flange	Latch Holder	13.5 mm	0.531 in	0.224 "	5.7 mm	5.08 mm	0.2 in	UL94 V-0	-40 °C	105 ░C	Through Hole	Board to Board Cable
ITT Cannon, LLC TST36AS00								36																				Shroud	Trident Rectangular Receptacles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 20.33
Newark	Each	100	$ 24.85
		250	$ 24.43

Description

General part information

TST36 Series

Connector Header Through Hole 36 position 0.200" (5.08mm)
