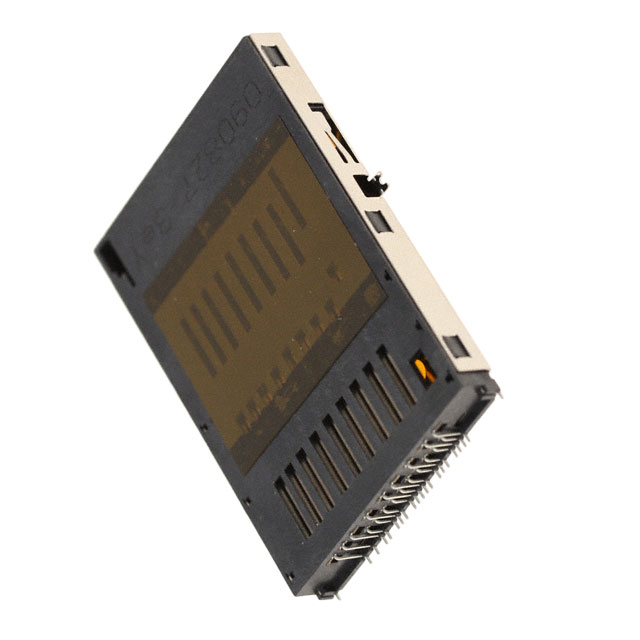

101-00578-89
ActiveAmphenol ICC (Commercial Products)
CONN SD/MMC/MS CARD PUSH-PUSH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
101-00578-89
ActiveAmphenol ICC (Commercial Products)
CONN SD/MMC/MS CARD PUSH-PUSH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 101-00578-89 |
|---|---|
| Card Type | MMC, Memory Stick, SD |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Switch, Board Guide |
| Height Above Board | 4.85 mm |
| Height Above Board | 0.191 in |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Reverse - Bottom |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
101-00578 Series
21 (19 + 2) Position Card Connector Combo - Memory Stick, MMC, SD Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
