3214367

Active

Phoenix Contact

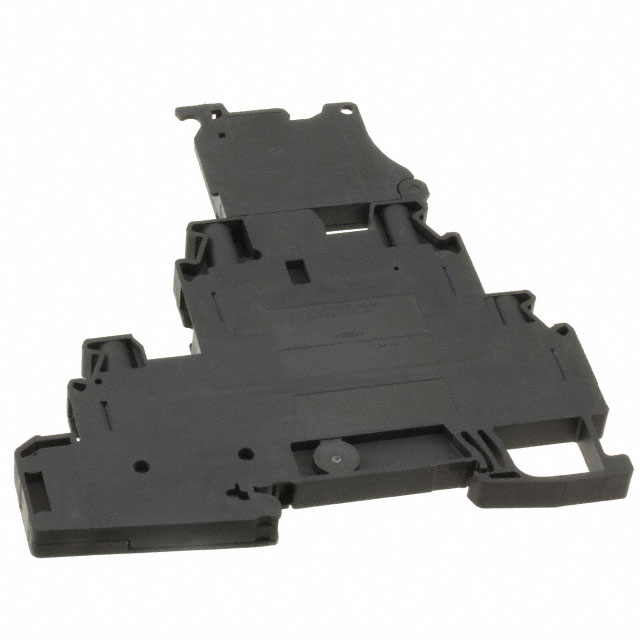

DIN RAIL TERMINAL BLOCKS UT 4-L/HESILED 60 (5X20)

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS UT 4-L/HESILED 60 (5X20)

Technical Specifications

Parameters and characteristics for this part

Specification	3214367

Color	Black
Current - UL	16 A
Disconnect Type	Fuse, Lever
Features	LED
Fuse Type [x]	5 mm
Fuse Type [y]	20 mm
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	3
Number of Levels [custom]	1 Grounded
Stripping Length	9 mm
Terminal - Width [y]	6.2 mm
Termination Style	Screw
Type	Feed Through, Disconnect, Isolated
Voltage - UL [custom]	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²

DIN Rail Terminal Blocks UT 4-L/HESILED 60 (5X20)

Part	Type	Terminal - Width [y]	Color	Number of Levels	Number of Levels [custom]	Features	Stripping Length	Fuse Type [y]	Fuse Type [x]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - UL	Material Flammability Rating	Voltage - UL [custom]	Disconnect Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material - Insulation	Termination Style
Phoenix Contact 3214367	Disconnect Feed Through Isolated	6.2 mm	Black	3	1 Grounded	LED	9 mm	20 mm	5 mm	0.14 mm²	4 mm²	16 A	UL94 V-0	300 V	Fuse Lever	26 AWG	10 AWG	Nylon Polyamide (PA)	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks UT 4-L/HESILED 60 (5X20)
