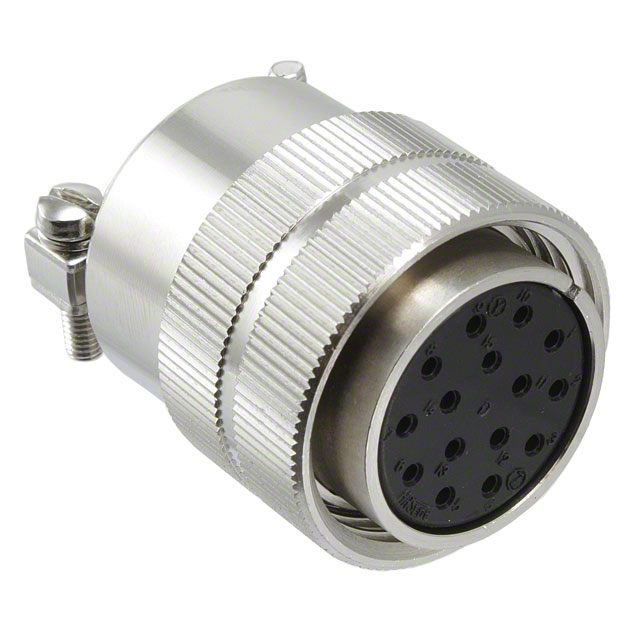

RM21TP-15S(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 15 POS

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 15 POS

Technical Specifications

Parameters and characteristics for this part

Part	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Connector Type	Primary Material	Contact Finish - Mating	Features	Number of Positions	Voltage Rating	Orientation	Contact Material	Shell Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Size - Insert	Mounting Type	Shielding	Current Rating (Amps)	Shell Material
Hirose Electric USA, Inc. RM21TP-20S(81)	0.591 in	15 mm	UL94 V-0	Female Sockets Plug	Metal	Silver	Backshell Cable Clamp	20	350 VAC 490 VDC	Keyed	Copper Alloy	Nickel	Silver	-25 °C	85 °C	Polyphenylene Sulfide (PPS)	21	Free Hanging (In-Line)	Unshielded	5 A	Brass
Hirose Electric USA, Inc. RM21TP-15S(71)				Female Sockets Plug				15	500 VAC 700 VDC	Keyed				-25 °C	85 °C		21	Free Hanging (In-Line)		5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position Circular Connector Plug, Female Sockets
