JWM11RA1A

Active

NKK Switches

SWITCH ROCKER ON NONE OFF SPST QUICK CONNECT/SOLDER LUG CURVED ROCKER 10A 250VAC 25000CYCLES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

JWM11RA1A

Active

NKK Switches

SWITCH ROCKER ON NONE OFF SPST QUICK CONNECT/SOLDER LUG CURVED ROCKER 10A 250VAC 25000CYCLES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWM11RA1A

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	24 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V

JWM11R Series

Part	Current Rating (Amps)	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Color - Actuator/Cap	Voltage Rating - AC	Circuit	Actuator Marking	Approval Agency	Termination Style	Termination Style	Termination Style	Switch Function
NKK Switches JWM11RCA/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Red	125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RC1A	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Red	125 V	SPST	O I	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RB2B	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Ivory	125 V	SPST	O -	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA2H/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Black	125 V	SPST	O -	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA1A	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Black	125 V	SPST	O I	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA2A	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Black	125 V	SPST	O -	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RBA/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Ivory	125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA1A/UCV-WL	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm		Black	125 V	SPST	O I	CSA UL VDE		Wire Leads		On-Off
NKK Switches JWM11RHH	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals		125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RBB/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Ivory	125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.11
		10	$ 7.29
		25	$ 6.95
		50	$ 6.65
		100	$ 6.39
		250	$ 6.05
		500	$ 5.61
		1000	$ 5.34
Newark	Each	1	$ 14.82
		5	$ 13.82
		10	$ 12.71
		25	$ 11.60
		50	$ 10.49
		100	$ 9.27
		250	$ 8.33

Description

General part information

JWM11R Series

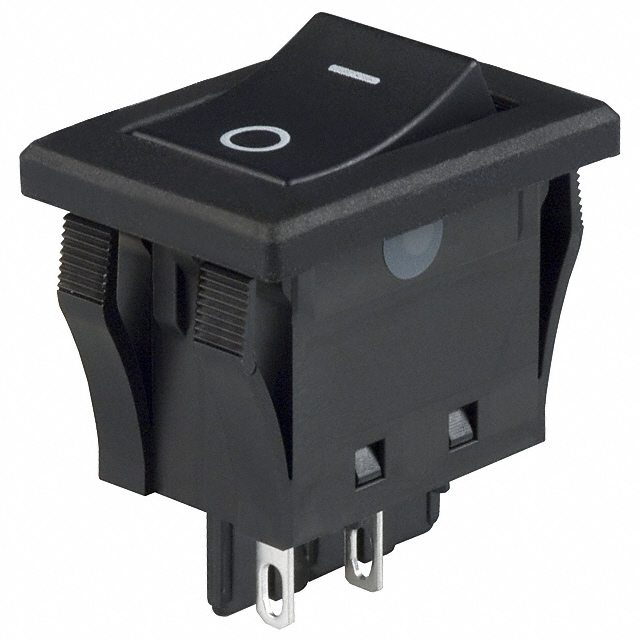

The JWM11RA1A is a SPST non-illuminated Panel-mount Rocker Switch with ON-None-OFF operation and horizontal inscription orientation. It has polyphenylene ether rocker, black polyamide housing. It is designed to handle large inrush current, with high electrical capacity of 10A. It is constructed for dust resistance with interior cover between actuator and contact area.
