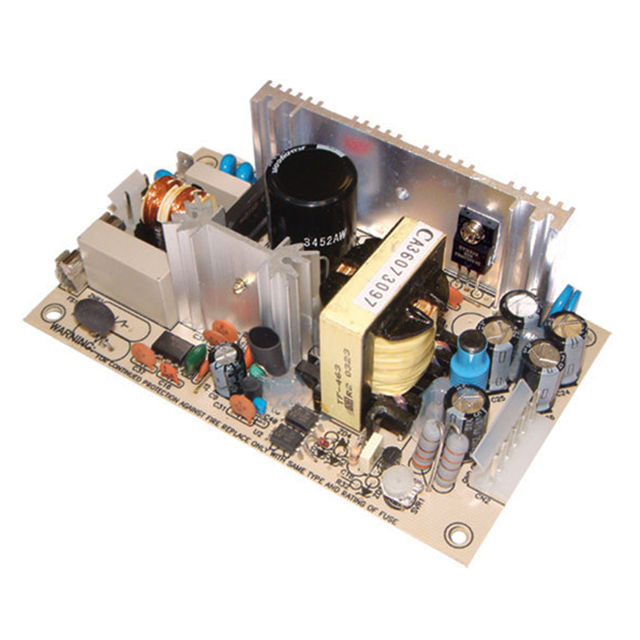

PT-65A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V -5V 60W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V -5V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	PT-65A

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	5.5 A
Current - Output 3	500 mA
Efficiency	76 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	76 mm
Size / Dimension [y]	2.99 in
Size / Dimension [z]	1.65 "
Size / Dimension [z]	42 mm
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-5 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications	Current - Output 3	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Output 2	Mounting Type	Voltage - Isolation	Type	Current - Output 1	Voltage - Output 3	Minimum Load Required	Approval Agency	Efficiency	Features
MEAN WELL USA Inc. PT-65A	127 mm	5 in	76 mm	1.65 "	42 mm	2.99 in	ITE (Commercial)	500 mA	90 VAC 127 VDC	264 VAC 370 VDC	3	-10 °C	60 °C	5 V	12 V	Chassis Mount	3000 V	Open Frame	5.5 A	-5 V		CB CE cURus TUV	76 %	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5V 12V -5V 90 ~ 264 VAC, 127 ~ 370 VDC Input
