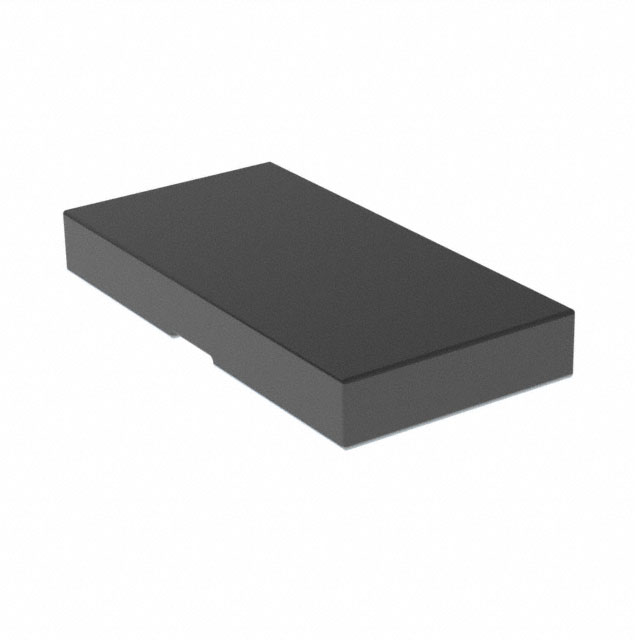

TLR3AWDTEL500F75

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, METAL STRIP, 2W, 0.0005OHM, 1% +/-TOL, 75PPM/CEL, SURFACE MOUNT, 2512, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TLR3AWDTEL500F75

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, METAL STRIP, 2W, 0.0005OHM, 1% +/-TOL, 75PPM/CEL, SURFACE MOUNT, 2512, CHIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLR3AWDTEL500F75

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Package / Case	6432 Metric
Package / Case	2512
Power (Watts)	2 W
Ratings	AEC-Q200
Resistance	0.5 mOhms
Size / Dimension [x]	0.25 "
Size / Dimension [x]	6.35 mm
Size / Dimension [y]	3.18 mm
Size / Dimension [y]	0.125 in
Supplier Device Package	2512
Temperature Coefficient	75 ppm/°C
Tolerance	1 %

TLR3A Series

Part	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Terminations	Composition	Power (Watts)	Ratings	Features	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Tolerance	Package / Case	Package / Case
KOA Speer Electronics, Inc. TLR3ADTE3L00F	3 mOhms	0.034 in	0.87 mm	2512	3.18 mm	0.125 in	0.25 "	6.35 mm	2	Metal Element	1 W	AEC-Q200	Automotive AEC-Q200 Current Sense	170 °C	-65 ░C	200 ppm/°C	1 %	6432 Metric	2512
KOA Speer Electronics, Inc. TLR3AWDTE3L00F	3 mOhms	0.033 "	0.85 mm	2512	3.18 mm	0.125 in	0.25 "	6.35 mm	2	Metal Element	2 W	AEC-Q200	Automotive AEC-Q200 Current Sense	170 °C	-65 ░C	150 ppm/°C	1 %	6432 Metric	2512
KOA Speer Electronics, Inc. TLR3AWDTE5L00F75	5 mOhms	0.033 "	0.85 mm	2512	3.18 mm	0.125 in	0.25 "	6.35 mm	2	Metal Element	2 W	AEC-Q200	Automotive AEC-Q200 Current Sense	155 °C	-65 ░C	75 ppm/°C	1 %	6432 Metric	2512
KOA Speer Electronics, Inc. TLR3APDTEL750F75	750 µOhms	0.033 "	0.85 mm	2512	3.18 mm	0.125 in	0.25 "	6.35 mm	2	Metal Element	5 W	AEC-Q200	Automotive AEC-Q200 Current Sense	170 °C	-65 ░C	75 ppm/°C	1 %	6432 Metric	2512
KOA Speer Electronics, Inc. TLR3APDTE9L00F50	9 mOhms	0.033 "	0.85 mm	2512	3.18 mm	0.125 in	0.25 "	6.35 mm	2	Metal Element	3 W	AEC-Q200	Automotive AEC-Q200 Current Sense	170 °C	-65 ░C	50 ppm/°C	1 %	6432 Metric	2512
KOA Speer Electronics, Inc. TLR3AWDTEL500F75	0.5 mOhms	0.033 "	0.85 mm	2512	3.18 mm	0.125 in	0.25 "	6.35 mm	2	Metal Element	2 W	AEC-Q200	Automotive AEC-Q200 Current Sense	155 °C	-65 ░C	75 ppm/°C	1 %	6432 Metric	2512
KOA Speer Electronics, Inc. TLR3APDTE10L0F50	10 mOhms	0.033 "	0.85 mm	2512	3.18 mm	0.125 in	0.25 "	6.35 mm	2	Metal Element	3 W	AEC-Q200	Automotive AEC-Q200 Current Sense	170 °C	-65 ░C	50 ppm/°C	1 %	6432 Metric	2512

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.37

Description

General part information

TLR3A Series

0.5 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
