SR3P-05

Active

IDEC

RELAY SOCKET, DIN RAIL, SCREW, 11 PINS, 10 A, 300 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SR3P-05

Active

IDEC

RELAY SOCKET, DIN RAIL, SCREW, 11 PINS, 10 A, 300 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SR3P-05

For Use With/Related Products	RR Series
Mounting Type	DIN Rail
Number of Positions	11
Termination Style	Screw Terminal
Type	Socket

SR3P Series

Part	Number of Positions	Type	Mounting Type	Termination Style	For Use With/Related Products	Features
IDEC SR3P-06	11	Socket	DIN Rail	Screw Terminal	RR Series
IDEC SR3P-05	11	Socket	DIN Rail	Screw Terminal	RR Series
IDEC SR3P-05C	11	Socket	DIN Rail	Screw Terminal	RR Series	Finger-Safe (IP20) Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.27
		10	$ 8.97
		10	$ 9.00
		25	$ 8.50
		30	$ 8.10
		50	$ 8.16
		100	$ 7.29
		100	$ 7.84
		250	$ 7.43
		500	$ 7.13
		1000	$ 6.84
Newark	Each	1	$ 11.00
		5	$ 10.72
		10	$ 10.45
		25	$ 9.91
		50	$ 9.36
		100	$ 8.81

Description

General part information

SR3P Series

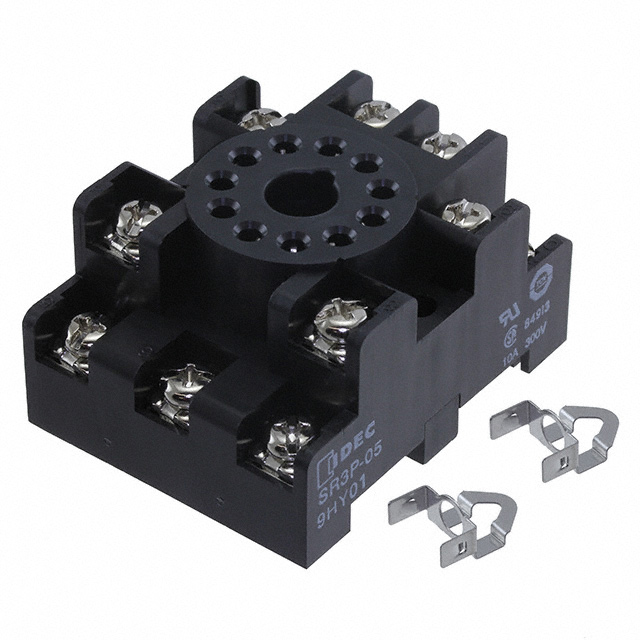

The SR3P-05 is a 11-pin Relay Socket with screw terminals. Suitable for use with RR3PA, RR2KP, GT3 (11-pin), RTE-P2 timer. This relay socket comes with SR3B-02F1 for RR3P, SR3P-06F3 for RR2KP hold-down spring and SFA-203 (timers) hold-down clip. This socket is ideal for snap-mount/surface mounting.
