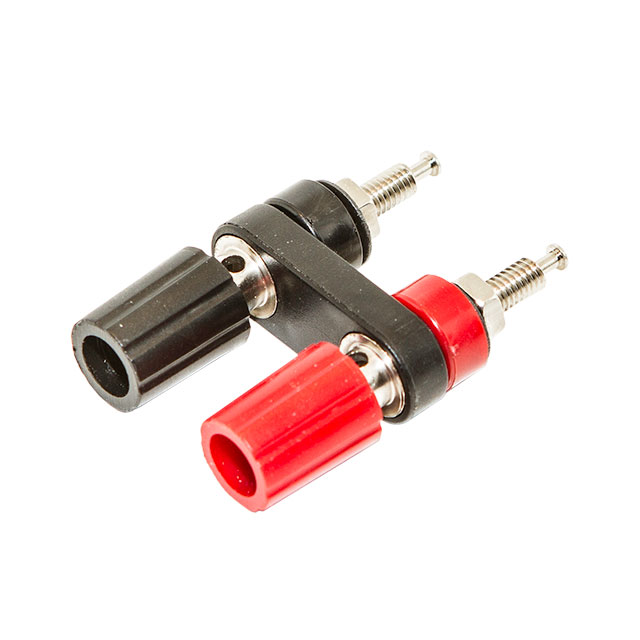

BU-P4243-0

Active

Mueller Electric Co

BINDING POST, 4MM, 15 A, 1 KV, TIN PLATED CONTACTS, PANEL MOUNT, BLACK

Search across all available documentation for this part.

Active

Mueller Electric Co

BINDING POST, 4MM, 15 A, 1 KV, TIN PLATED CONTACTS, PANEL MOUNT, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P4243-0

Color	Black, Red
Cross Hole Diameter [diameter]	0.1 in
Cross Hole Diameter [diameter]	2.54 mm
Current Rating (Amps)	15 A
Head Style	Fluted
Material - Body	Brass
Material - Insulation	Polycarbonate
Material - Insulation	PC
Panel Thickness	0.25 "
Panel Thickness	6.35 mm
Plating - Body	Silver
Termination	Turret, Threaded
Termination Thread	M4
Type	Dual, Standard
Voltage Rating	1000 VDC

Part	Voltage Rating	Head Style	Material - Body	Color	Termination	Type	Plating - Body	Termination Thread	Material - Insulation	Material - Insulation	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Panel Thickness	Panel Thickness	Current Rating (Amps)
Mueller Electric Co BU-P4243-0	1000 VDC	Fluted	Brass	Black Red	Threaded Turret	Dual Standard	Silver	M4	Polycarbonate	PC	0.1 in	2.54 mm	0.25 "	6.35 mm	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Binding Post Connector Standard, Dual Fluted Black, Red Silver
