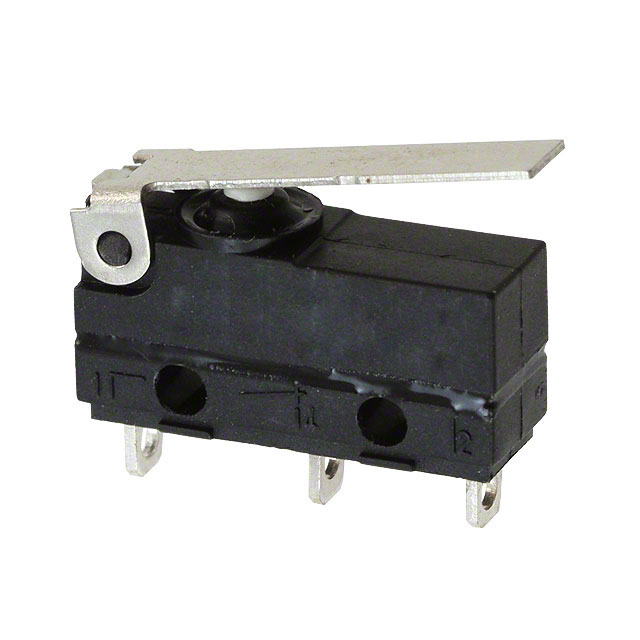

ZW10F15CD1 - ZW10F15CD1

ZW10F15CD1

Obsolete
Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range GuideDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationZW10F15CD1
Actuator TypeLever, Straight
CircuitSPDT
Current Rating (Amps)100 mA
Differential Travel0.028 in
Differential Travel0.7 mm
Electrical Life10000 Cycles
Ingress ProtectionIP00
Mechanical Life1000000 Cycles
Mounting TypeChassis Mount
Operating Force66 gf
Operating Position8.8 mm
Operating Position0.345 in
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
Overtravel0.039 in
Overtravel1 mm
Pretravel0.188 in
Pretravel4.8 mm
Release Force13 gf
Switch FunctionOn-Mom
Termination StyleSolder Lug
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

ZW10F Series

Switch SPDT Chassis Mount
