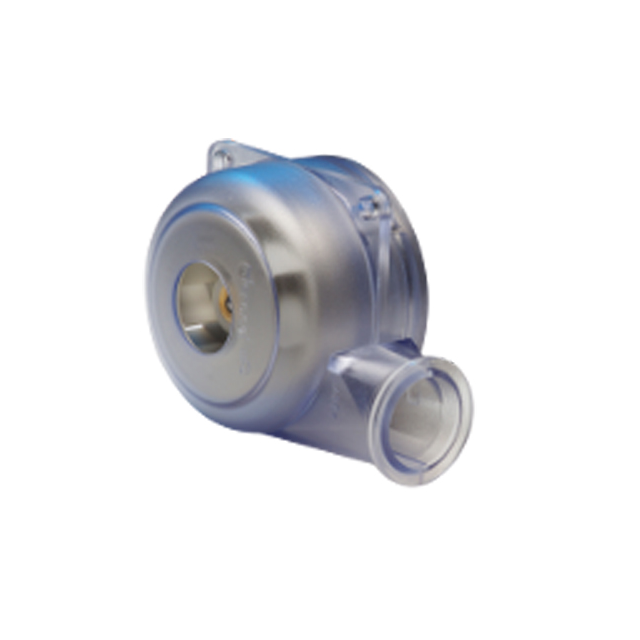

U51DL-012KK-5
ActiveMicronel USA
FAN BLOWER 65X34.5MM 12VDC RECT
Deep-Dive with AI
Search across all available documentation for this part.
U51DL-012KK-5
ActiveMicronel USA
FAN BLOWER 65X34.5MM 12VDC RECT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | U51DL-012KK-5 |
|---|---|
| Air Flow | 0.406 m³/min |
| Air Flow | 14.5 CFM |
| Approval Agency | CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.8 A |
| Fan Type | Blower |
| Features | Motor Winding |
| Material - Blade | Polyamide (PA6), Nylon 6 |
| Material - Frame | Polycarbonate (PC) |
| Noise | 58 dB(A) |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 38500 RPM |
| Size / Dimension [x] | 65 mm |
| Size / Dimension [y] | 50 mm |
| Static Pressure | 20.876 in H2O |
| Static Pressure | 5200 Pa |
| Termination | 3 Position Rectangular Connector |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 12 V |
| Voltage Range [Min] | 8 VDC |
| Width [x] | 34.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 223.00 | |
Description
General part information
U51DL-012KK-5
Fan Blower 12VDC Rectangular/Rounded - 65mm L x 50mm H Ball 14.5 CFM (0.406m³/min) 3 Position Rectangular Connector
Documents
Technical documentation and resources
No documents available
