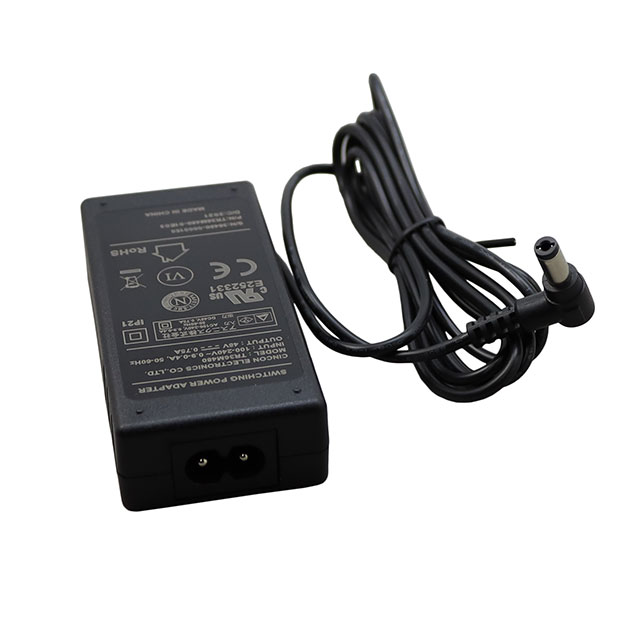

TR36M480-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 48V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR36M480-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 48V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR36M480-01E03 VI

Applications	Household Appliances, Medical
Approval Agency	NEMKO, CE, FCC, PSE, cURus
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	750 mA
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.77 "
Size / Dimension [y]	45 mm
Size / Dimension [z]	0.89 in
Size / Dimension [z]	22.5 mm
Standard Number	60335-1, 60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	48 V

TR36M Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Current - Output (Max) [Max]	Form	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Cord Length	Cord Length	Approval Agency	Polarization	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption [Max]	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Standard Number	Efficiency	Region Utilized	Weight	Weight
Cincon Electronics Co. LTD TR36M360-01E03 VI	264 VAC	80 VAC	Cord	1 A	Desktop (Class II)	Household Appliances Medical	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	36 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	60335-1 60601-1	CoC Tier 2 Level VI	International
Cincon Electronics Co. LTD TR36M360-11G03 VI	264 VAC	80 VAC	Cord	1 A	Desktop (Class II)	Medical	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	36 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M180-11G03 VI	264 VAC	80 VAC	Cord	2 A	Desktop (Class II)	Medical	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	18 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M135-11G03 VI	264 VAC	80 VAC	Cord	2.4 A	Desktop (Class II)	Medical	32 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	13.5 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M480-11G03 VI	264 VAC	80 VAC	Cord	750 mA	Desktop (Class II)	Medical	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	48 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M240-11G03 VI	264 VAC	80 VAC	Cord	1.5 A	Desktop (Class II)	Medical	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	24 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M050-11G02 VI	264 VAC	80 VAC	Cord	5 A	Desktop (Class II)	Medical	25 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	48 in	1.22 m	CE cURus FCC NEMKO PSE	Positive Center	5 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M150-11G03 VI	264 VAC	80 VAC	Cord	2.4 A	Desktop (Class II)	Medical	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	15 VDC	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M120-11G03 VI	264 VAC	80 VAC	Cord	2.5 A	Desktop (Class II)	Medical	30 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	12 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A		CoC Tier 2 Level VI	International	150.14 g	0.331 lb
Cincon Electronics Co. LTD TR36M480-01E03 VI	264 VAC	80 VAC	Cord	750 mA	Desktop (Class II)	Household Appliances Medical	36 W	0.89 in	100 mm	22.5 mm	1.77 "	3.94 in	45 mm	70.9 in	1.8 m	CE cURus FCC NEMKO PSE	Positive Center	48 V	-30 ░C	60 °C	75 mW	IEC 320-C8	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	60335-1 60601-1	CoC Tier 2 Level VI	International

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.00

Description

General part information

TR36M Series

48V 36 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
