Q-010020001003i

Active

Amphenol Custom Cable

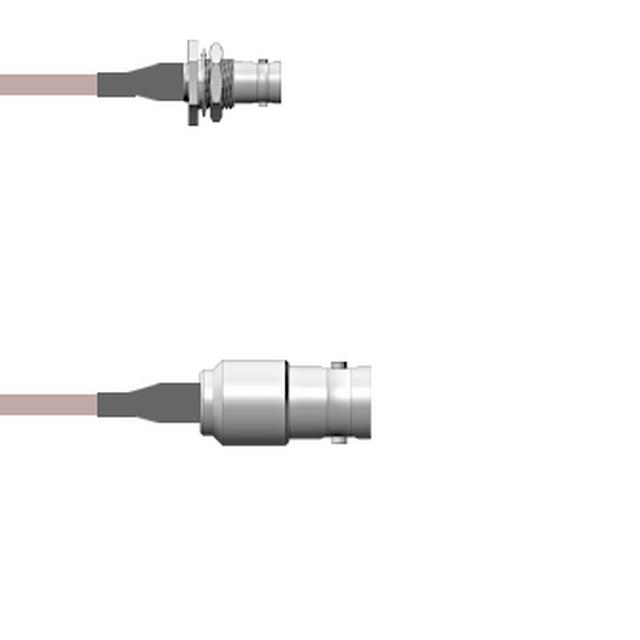

COAX CABLE BNC TO BNC 3"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE BNC TO BNC 3"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-010020001003i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	BNC to BNC

Part	2nd Contact Gender	Features	Overall Impedance	Length	Length	Length	1st Connector Mounting Type	1st Connector Mounting Feature	Style	Color	1st Contact Gender	2nd Connector	2nd Connector Mounting Type	Cable Type	1st Connector	Frequency - Max [Max]
Amphenol Custom Cable Q-010020001072i	Female	Shielded	50 Ohms	6 ft	72 in	1.8 m	Panel Mount	Bulkhead - Front Side Nut	BNC to BNC	Copper	Female	BNC Jack	Free Hanging (In-Line)	RG-178	BNC Jack	4 GHz
Amphenol Custom Cable Q-010020001084i	Female	Shielded	50 Ohms	7 ft	84 in	2.1 m	Panel Mount	Bulkhead - Front Side Nut	BNC to BNC	Copper	Female	BNC Jack	Free Hanging (In-Line)	RG-178	BNC Jack	4 GHz
Amphenol Custom Cable Q-010020001003i	Female	Shielded	50 Ohms		3 in	76.2 mm	Panel Mount	Bulkhead - Front Side Nut	BNC to BNC	Copper	Female	BNC Jack	Free Hanging (In-Line)	RG-178	BNC Jack	4 GHz
Amphenol Custom Cable Q-010020001003M	Female	Shielded	50 Ohms	9.8 '	118.1 in	3 m	Panel Mount	Bulkhead - Front Side Nut	BNC to BNC	Copper	Female	BNC Jack	Free Hanging (In-Line)	RG-178	BNC Jack	4 GHz
Amphenol Custom Cable Q-0100200011.5M	Female	Shielded	50 Ohms	4.9 ft	59.1 in	1.5 m	Panel Mount	Bulkhead - Front Side Nut	BNC to BNC	Copper	Female	BNC Jack	Free Hanging (In-Line)	RG-178	BNC Jack	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to BNC RG-178 3.000" (76.20mm)
