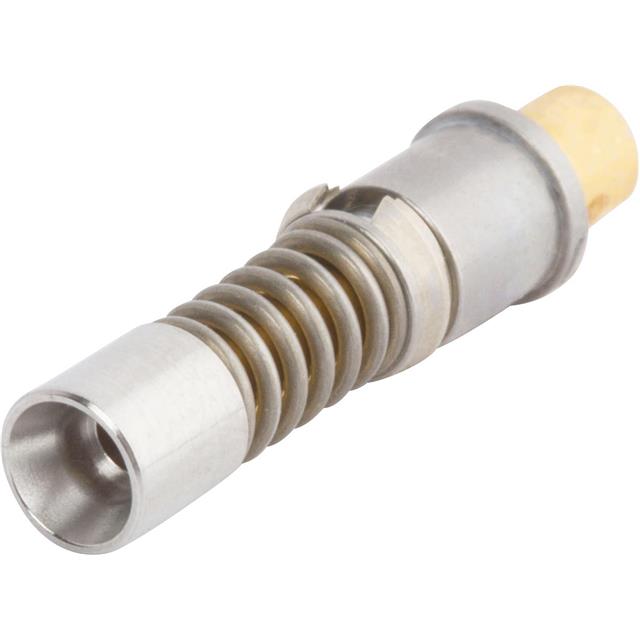

SF3202-6001

Active

Amphenol SV Microwave

SMPM MALE SNAP-IN FLOAT MOUNT CONNECTOR FOR .047 CABLE /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMPM MALE SNAP-IN FLOAT MOUNT CONNECTOR FOR .047 CABLE /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF3202-6001

Body Material	Stainless Steel
Cable Group	Flexible
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Catcher's Mitt
Frequency - Max [Max]	65 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Panel Mount, Snap-In
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Number of Ports	Frequency - Max [Max]	Connector Style	Shield Termination	Fastening Type	Cable Group	Cable Group	Contact Termination	Connector Type	Mounting Type	Center Contact Material	Features	Impedance	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Body Material
Amphenol SV Microwave SF3202-6001	1	65 GHz	SMPM	Solder	Snap-On	Flexible	0.047 in	Solder	Male Pin Plug	Panel Mount Snap-In	Beryllium Copper	Catcher's Mitt	50 Ohms	Silver	-55 °C	125 °C	Gold	Polytetrafluoroethylene (PTFE)	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Plug, Male Pin 50 Ohms Panel Mount, Snap-In Solder
