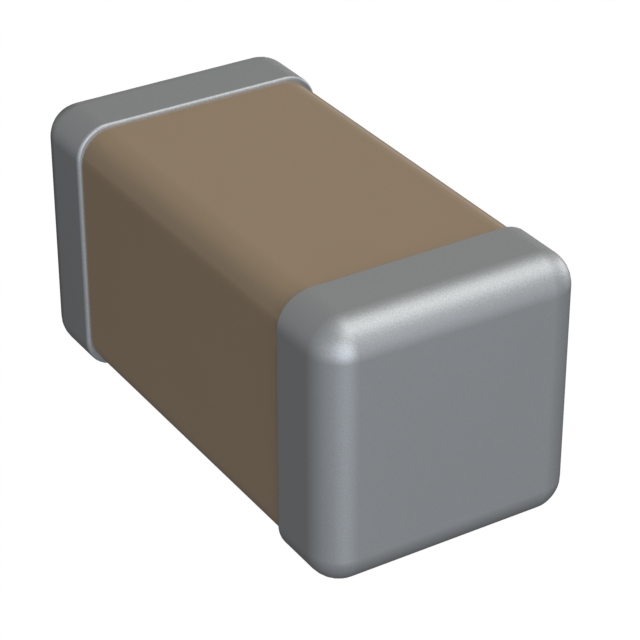

1206Y0500474KXR

Active

Knowles Johanson Manufacturing

CAP CER 0.47UF 50V X7R 1206

Deep-Dive with AI

Search across all available documentation for this part.

1206Y0500474KXR

Active

Knowles Johanson Manufacturing

CAP CER 0.47UF 50V X7R 1206

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1206Y0500474KXR

Applications	Boardflex Sensitive
Capacitance	0.47 µF
Features	Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	1.6 mm
Thickness (Max) [Max]	0.063 in
Tolerance	10 %
Voltage - Rated	50 VDC

1206Y Series

...

Part	Tolerance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Mounting Type	Capacitance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness (Max) [Max]	Thickness (Max) [Max]	Ratings	Package / Case	Applications	Temperature Coefficient	Voltage - Rated
Knowles Johanson Manufacturing 1206Y0500560KAT	10 %	Soft Termination	-55 °C	125 °C	50 VDC	MLCC Surface Mount	56 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in	AEC-Q200	1206 (3216 Metric)	Automotive Boardflex Sensitive	C0G NP0 (1B)
Knowles Johanson Manufacturing 1206Y0630272JXT	5 %	Soft Termination	-55 °C	125 °C		MLCC Surface Mount	2700 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in		1206 (3216 Metric)	Boardflex Sensitive	X7R
Knowles Johanson Manufacturing 1206Y5001P80CCT	0.25 pF	Soft Termination	-55 °C	125 °C	500 V	MLCC Surface Mount	1.8 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in		1206 (3216 Metric)	Boardflex Sensitive	C0G NP0 (1B)
Knowles Johanson Manufacturing 1206Y1000271MDT	20 %	High Temperature Soft Termination	-55 °C	125 °C	100 V	MLCC Surface Mount	270 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in		1206 (3216 Metric)	Boardflex Sensitive High Reliability	X7R
Knowles Johanson Manufacturing 1206Y5000331FCT	1 %	Soft Termination	-55 °C	125 °C	500 V	MLCC Surface Mount	330 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in		1206 (3216 Metric)	Boardflex Sensitive	C0G NP0 (1B)
Knowles Johanson Manufacturing 1206Y0635P60CAT	0.25 pF	Soft Termination	-55 °C	125 °C		MLCC Surface Mount	5.6 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in	AEC-Q200	1206 (3216 Metric)	Automotive Boardflex Sensitive	C0G NP0 (1B)
Knowles Johanson Manufacturing 1206Y1K00560KAT	10 %	Soft Termination	-55 °C	125 °C	1000 V	MLCC Surface Mount	56 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in	AEC-Q200	1206 (3216 Metric)	Automotive Boardflex Sensitive	C0G NP0 (1B)	1 kV
Knowles Johanson Manufacturing 1206Y0500682FAT	1 %	Soft Termination	-55 °C	125 °C	50 VDC	MLCC Surface Mount	6800 pF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in	AEC-Q200	1206 (3216 Metric)	Automotive Boardflex Sensitive	C0G NP0 (1B)
Knowles Johanson Manufacturing 1206Y0500474KXR	10 %	Soft Termination	-55 °C	125 °C	50 VDC	MLCC Surface Mount	0.47 µF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in		1206 (3216 Metric)	Boardflex Sensitive	X7R
Knowles Johanson Manufacturing 1206Y2500273MDT	20 %	High Temperature Soft Termination	-55 °C	125 °C	250 V	MLCC Surface Mount	0.027 µF	0.063 in	1.6 mm	0.126 "	3.2 mm	1.6 mm	0.063 in		1206 (3216 Metric)	Boardflex Sensitive High Reliability	X7R

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	20000	$ 0.22

Description

General part information

1206Y Series

0.47 µF ±10% 50V Ceramic Capacitor X7R 1206 (3216 Metric)

Documents

Technical documentation and resources

No documents available
