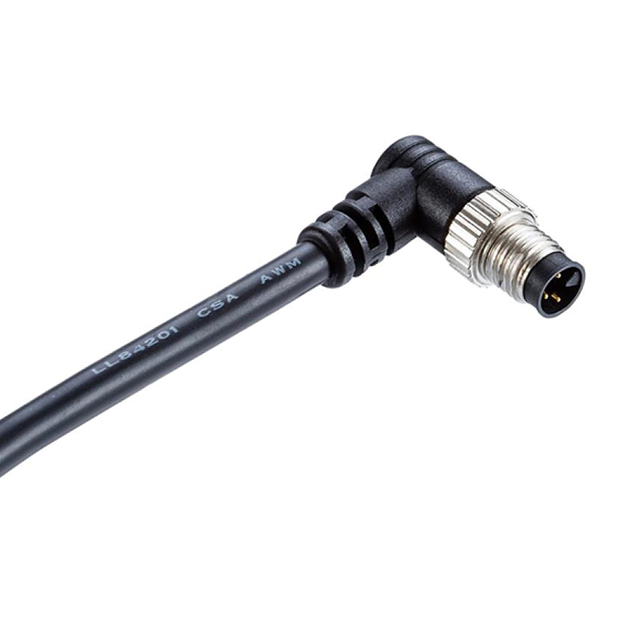

8A-05AMMM-SR7A01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 1.5A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED,

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 1.5A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED,

Technical Specifications

Parameters and characteristics for this part

Specification	8A-05AMMM-SR7A01

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Number of Positions	1st Connector Shell Size - Insert	2nd Connector Type	Ingress Protection	Assembly Configuration	1st Connector Number of Positions Loaded	1st Connector Mounting Type	1st Connector Type	Shielding	Length [x]	Length [x]	Color	1st Connector Gender	Cable Material	1st Connector Orientation [custom]	Usage	Cable Type
Amphenol LTW 8A-05AMMM-SR7A01	5	M8	Wire Leads	IP67 - Dust Tight Waterproof	Standard	All	Free Hanging (In-Line)	Plug Right Angle	Unshielded	1 m	3.28 ft	Black	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Industrial Environments	Round
Amphenol LTW 8A-05AMMM-SL7A03	5	M8	Wire Leads	IP67 - Dust Tight Waterproof	Standard	All	Free Hanging (In-Line)	Plug	Unshielded	3 m	9.84 ft	Black	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Industrial Environments	Round
Amphenol LTW 8A-05AMMM-SL7A01	5	M8	Wire Leads	IP67 - Dust Tight Waterproof	Standard	All	Free Hanging (In-Line)	Plug	Unshielded	1 m	3.28 ft	Black	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Industrial Environments	Round
Amphenol LTW 8A-05AMMM-SR7A05	5	M8	Wire Leads	IP67 - Dust Tight Waterproof	Standard	All	Free Hanging (In-Line)	Plug Right Angle	Unshielded	500 mm	1.64 ft	Black	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Industrial Environments	Round
Amphenol LTW 8A-05AMMM-SL7A02	5	M8	Wire Leads	IP67 - Dust Tight Waterproof	Standard	All	Free Hanging (In-Line)	Plug	Unshielded	2 m	6.56 ft	Black	Male Pins	Polyvinyl Chloride (PVC)	Keyed	Industrial Environments	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly 3.28' (1.00m)
