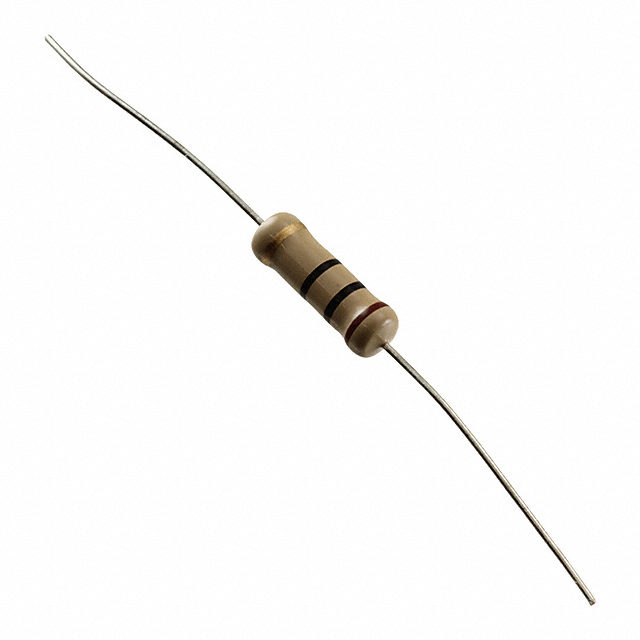

CFR200J10R

Active

TE Connectivity Passive Product

RES 10 OHM 5% 2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFR200J10R

Active

TE Connectivity Passive Product

RES 10 OHM 5% 2W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFR200J10R

Composition	Carbon Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	2 W
Resistance	10 Ohms
Size / Dimension [diameter]	0.217 "
Size / Dimension [diameter]	5.5 mm
Size / Dimension [x]	16 mm
Size / Dimension [x]	0.63 "
Supplier Device Package	Axial
Temperature Coefficient	350 ppm/°C
Tolerance	5 %

CFR200 Series

Part	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Supplier Device Package	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Package / Case	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Tolerance	Resistance	Composition	Temperature Coefficient
TE Connectivity Passive Product CFR200J100K	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-700 ppm/°C	5 %	100 kOhms	Carbon Film
TE Connectivity Passive Product CFR200J18K	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	5 %	18 kOhms	Carbon Film
TE Connectivity Passive Product CFR200J15K	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	5 %	15 kOhms	Carbon Film
TE Connectivity Passive Product CFR200J3K3	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	5 %	3300 Ohms	Carbon Film
TE Connectivity Passive Product CFR200J56K	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	5 %	56 kOhms	Carbon Film
TE Connectivity Passive Product CFR200J220R	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	5 %	220 Ohms	Carbon Film
TE Connectivity Passive Product CFR200J470R	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	5 %	470 Ohms	Carbon Film
TE Connectivity Passive Product CFR200G82R	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	2 %	82 Ohms	Carbon Film
TE Connectivity Passive Product CFR200J10R	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial			5 %	10 Ohms	Carbon Film	350 ppm/°C
TE Connectivity Passive Product CFR200G1K0	0.217 "	16 mm	5.5 mm	0.63 "	Axial	2 W	155 °C	-55 °C	2	Axial	0 ppm/°C	-450 ppm/°C	2 %	1000 Ohms	Carbon Film

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.39
		10	$ 0.28
		25	$ 0.23
		50	$ 0.17
		100	$ 0.12
		250	$ 0.11
		500	$ 0.09
	Tape & Box (TB)	1000	$ 0.07
		2000	$ 0.07
		5000	$ 0.06
		10000	$ 0.06
		25000	$ 0.06
		50000	$ 0.05
		100000	$ 0.05

Description

General part information

CFR200 Series

10 Ohms ±5% 2W Through Hole Resistor Axial Carbon Film
