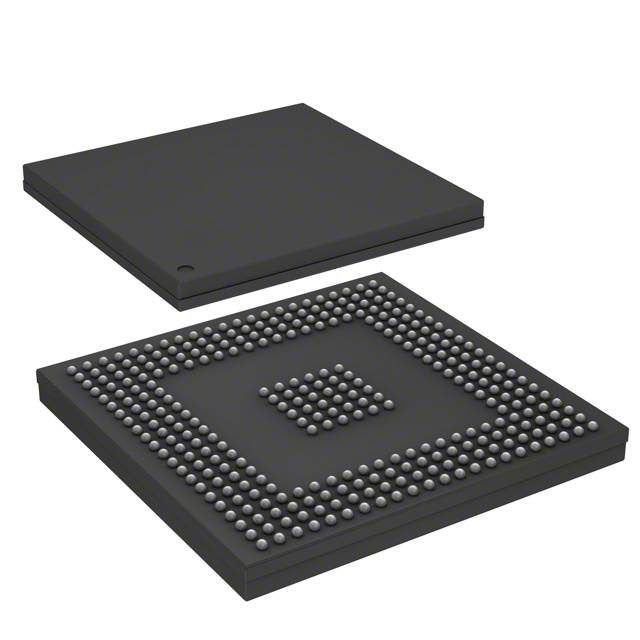

SPC5642AF2MVZ2R

Active

Freescale Semiconductor - NXP

IC MCU 32BIT 2MB FLASH 324PBGA

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC MCU 32BIT 2MB FLASH 324PBGA

Technical Specifications

Parameters and characteristics for this part

Part	Program Memory Size	Data Converters	Connectivity	Operating Temperature [Min]	Operating Temperature [Max]	Speed	RAM Size	Core Size	Oscillator Type	Program Memory Type	Core Processor	Mounting Type	Package / Case	Number of I/O	Peripherals	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Freescale Semiconductor - NXP SPC5642AF2MVZ2	2 MB	12 b 40 x	CANbus EBI/EMI LINbus SCI SPI	-40 °C	125 °C	120 MHz	128 K	32-Bit Single-Core	Internal	FLASH	e200z4	Surface Mount	324-BBGA	151	DMA POR PWM WDT	324-PBGA (23x23)	1.14 V	5.25 V
Freescale Semiconductor - NXP SPC5642AF2MVZ3	2 MB	12 b 40 x	CANbus EBI/EMI LINbus SCI SPI	-40 °C	125 °C	80 MHz	128 K	32-Bit Single-Core	Internal	FLASH	e200z4	Surface Mount	324-BBGA	151	DMA POR PWM WDT	324-PBGA (23x23)	1.14 V	5.25 V
Freescale Semiconductor - NXP SPC5642AF2MLU1R	2 MB	12 b 40 x	CANbus EBI/EMI LINbus SCI SPI	-40 °C	125 °C	150 MHz	128 K	32-Bit Single-Core	Internal	FLASH	e200z4	Surface Mount	176-LQFP	84 I/O	DMA POR PWM WDT	176-LQFP (24x24)	1.14 V	5.25 V
Freescale Semiconductor - NXP SPC5642AF2MLU1	2 MB	12 b 40 x	CANbus EBI/EMI LINbus SCI SPI	-40 °C	125 °C	150 MHz	128 K	32-Bit Single-Core	Internal	FLASH	e200z4	Surface Mount	176-LQFP	84 I/O	DMA POR PWM WDT	176-LQFP (24x24)	1.14 V	5.25 V
Freescale Semiconductor - NXP SPC5642AF2MVZ2R	2 MB	12 b 40 x	CANbus EBI/EMI LINbus SCI SPI	-40 °C	125 °C	120 MHz	128 K	32-Bit Single-Core	Internal	FLASH	e200z4	Surface Mount	324-BBGA	151	DMA POR PWM WDT	324-PBGA (23x23)	1.14 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 27.68

General part information

e200z4 MPC56xx Qorivva Microcontroller IC 32-Bit Single-Core 120MHz 2MB (2M x 8) FLASH 324-PBGA (23x23)
