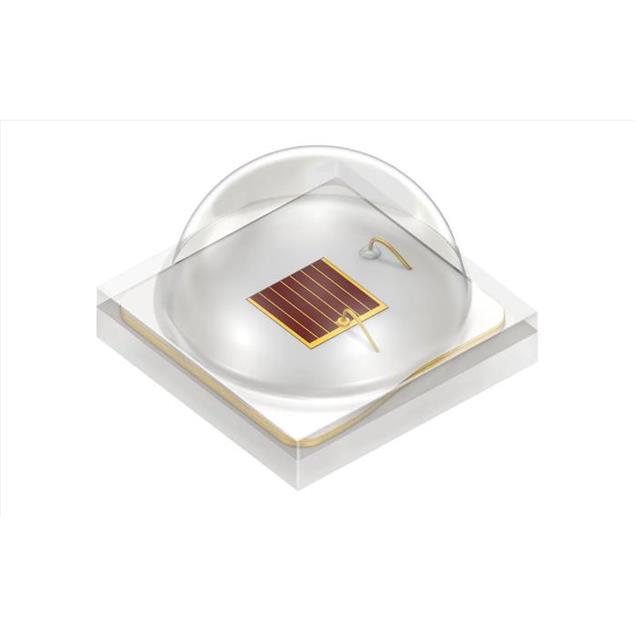

GF CSSRML.24-TNUL-1-1-350-R33

Active

ams-OSRAM USA INC.

LED, FAR RED, 730NM, 120DEG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED, FAR RED, 730NM, 120DEG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	GF CSSRML.24-TNUL-1-1-350-R33

Color	Far Red
Current - Max [Max]	1 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	2.29 mm
Height - Seated (Max) [Max] [z]	0.09 in
Luminous Flux @ Current/Temperature	473 mW
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength	730 nm

Part	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	Supplier Device Package	Mounting Type	Wavelength	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test
ams-OSRAM USA INC. GF CSSRML.24-TNUL-1-1-350-R33	Far Red	0.118 in	3 mm	3 mm	0.118 in	1212	3030 Metric	SMD	Surface Mount	730 nm	120 °	2.29 mm	0.09 in	473 mW	1 A	1.95 V	350 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color OSLON® Optimal Horticulture Far Red 730nm (Typ) 1212 (3030 Metric)
