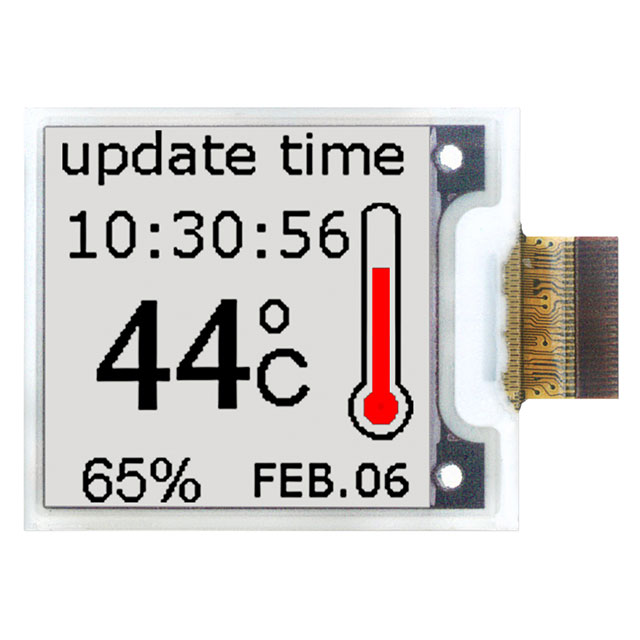

E2154FS091

Obsolete

Pervasive Displays

GRAPHIC DISPLAY TFT BLACK RED WH

Search across all available documentation for this part.

Obsolete

Pervasive Displays

GRAPHIC DISPLAY TFT BLACK RED WH

Technical Specifications

Parameters and characteristics for this part

Specification	E2154FS091

Backlight	Without Backlight
Diagonal Screen Size [x]	1.54 in
Diagonal Screen Size [x]	39.12 mm
Display Mode	Reflective
Display Type	TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.18 mm
Dot Pitch [y]	0.18 mm
Dot Pixels [x]	152 pixels
Dot Pixels [y]	152 pixels
Graphics Color	Black, Red, White
Interface	SPI
Viewing Area [x]	27.51 mm
Viewing Area [y]	27.51 mm

Part	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [y]	Viewing Area [x]	Display Type	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size [x]	Diagonal Screen Size [x]	Graphics Color	Interface	Backlight	Display Mode	Background Color
Pervasive Displays E2154CS0C1	0.18 mm	0.18 mm	27.51 mm	27.51 mm	TFT - Electronic Paper Display (EPD)	152 pixels	152 pixels	1.54 in	39.12 mm	Black White	SPI
Pervasive Displays E2154CS091	0.18 mm	0.18 mm	27.51 mm	27.51 mm	TFT - Electronic Paper Display (EPD)	152 pixels	152 pixels	1.54 in	39.12 mm	Black	SPI	Without Backlight	Reflective	White
Pervasive Displays E2154FS091	0.18 mm	0.18 mm	27.51 mm	27.51 mm	TFT - Electronic Paper Display (EPD)	152 pixels	152 pixels	1.54 in	39.12 mm	Black Red White	SPI	Without Backlight	Reflective
Pervasive Displays E2154PS0C1	0.18 mm	0.18 mm			TFT - Color	152 pixels	152 pixels	1.54 in	39.12 mm	Black White	SPI	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Reflective Black, Red, White TFT - Electronic Paper Display (EPD) SPI 1.54" (39.12mm) 152 x 152
