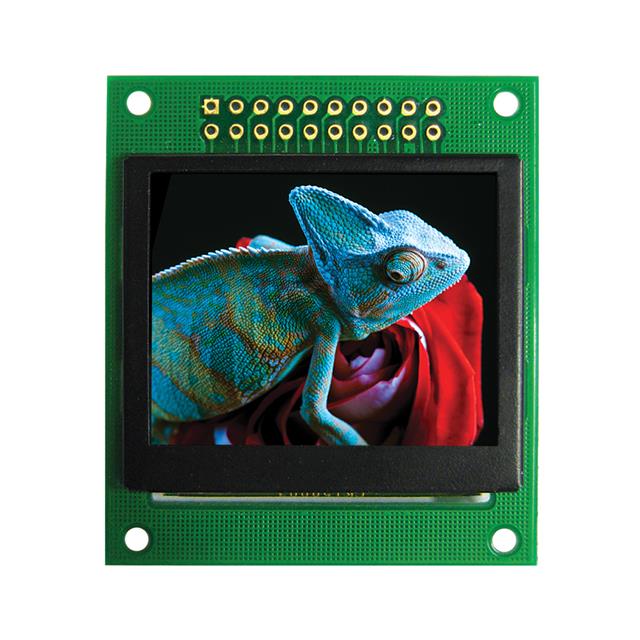

NHD-1.69-160128UGC3

Newhaven Display Intl

DISPLAY FULL COLOR OLED 1.69"

Search across all available documentation for this part.

Newhaven Display Intl

DISPLAY FULL COLOR OLED 1.69"

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Secondary Attributes	Function	Type	Utilized IC / Part	Contents	Interface	Viewing Area [y]	Viewing Area [x]	Dot Pitch [x]	Dot Pitch [y]	Dot Size [z]	Dot Size [y]	Controller Type	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Display Type	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Backlight	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Platform	Function	Interconnect System
Newhaven Display Intl NHD-1.69-BREAKOUT	Board(s)	SPI Interface(s)	Breakout Board	Display	NHD-1.69-160128G SSD1357	Board(s)
Newhaven Display Intl NHD-1.69-160128UGC3							Parallel/Serial	28 mm	35 mm	0.21 mm	0.21 mm	0.19 mm	0.14 mm	SEPS525	Blue Green Red	128	160	OLED - Passive Matrix	42.93 mm	1.7 in	Without Backlight
Newhaven Display Intl NHD-1.69-160128G							Parallel Serial							SEPS525	Blue Green Red	128	160	OLED				Transflective	1.69 in	42.93 mm
Newhaven Display Intl NHD-1.69-AU-SHIELD			OLED	Display	NHD-1.69-160128ASC3 SEPS525	Board(s)																			Arduino	1.69 in	Arduino R3 Shield

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Red, Green, Blue (RGB) OLED - Passive Matrix Parallel/Serial 1.7" (42.93mm) 160 x 128

Technical documentation and resources
