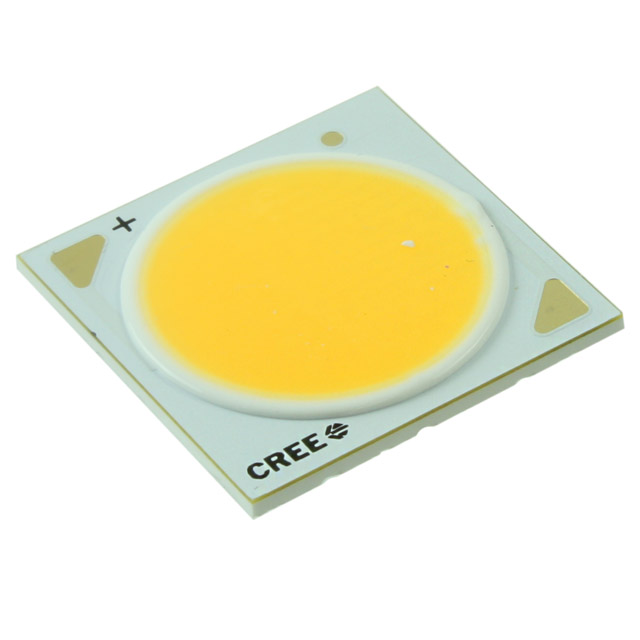

CXA2520-0000-000N00Q235F

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA2520-0000-000N00Q235F

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.25 A
Current - Test	550 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	19 mm
Lumens/Watt @ Current - Test	110 lm/W
Luminous Flux @ Current/Temperature	2180 lm
Size / Dimension [x]	23.85 mm
Size / Dimension [y]	23.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36 V

CXA2520 Series

...

Part	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Type	Color	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Current - Max [Max]	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Type	CRI (Color Rendering Index)	Configuration	Temperature - Test	Height [z]	Current - Test
Cree LED CXA2520-0000-000N0YN430H	19 mm	36 V	115 °	Flat	Warm White	1830 lm	1770 lm	1710 lm	1.25 A	89 lm/W	23.85 mm	23.85 mm	3000 K	Chip On Board (COB)	93	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N00Q20E7	19 mm	36 V	115 °	Flat	Warm White		2180 lm		1.25 A	110 lm/W	23.85 mm	23.85 mm		Chip On Board (COB)	80	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N00Q235F	19 mm	36 V	115 °	Flat	Warm White		2180 lm		1.25 A	110 lm/W	23.85 mm	23.85 mm		Chip On Board (COB)	80	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N0YM40E6	19 mm	36 V	115 °	Flat	Warm White		1538 lm		1.25 A	78 lm/W	23.85 mm	23.85 mm	3500 K	Chip On Board (COB)	93	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N0YM230H	19 mm	36 V	115 °	Flat	Warm White	1485 lm	1433 lm	1380 lm	1.25 A	72 lm/W	23.85 mm	23.85 mm	3000 K	Chip On Board (COB)	93	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N00Q20E6	19 mm	36 V	115 °	Flat	Warm White		2180 lm		1.25 A	110 lm/W	23.85 mm	23.85 mm	3500 K	Chip On Board (COB)	80	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N0HR450H	19 mm	36 V	115 °	Flat	Cool White	2780 lm	2690 lm	2600 lm	1.25 A	136 lm/W	23.85 mm	23.85 mm	5000 K	Chip On Board (COB)	80	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N0HP40E3	19 mm	36 V	115 °	Flat	Cool White		2033 lm		1.25 A	103 lm/W	23.85 mm	23.85 mm	5000 K	Chip On Board (COB)		Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N0HR240G	19 mm	36 V	115 °	Flat	Neutral White	2600 lm	2510 lm	2420 lm	1.25 A	127 lm/W	23.85 mm	23.85 mm	4000 K	Chip On Board (COB)	80	Square	85 °C	1.7 mm	550 mA
Cree LED CXA2520-0000-000N0UN450H	19 mm	36 V	115 °	Flat	Cool White	1830 lm	1770 lm	1710 lm	1.25 A	89 lm/W	23.85 mm	23.85 mm	5000 K	Chip On Board (COB)	90	Square	85 °C	1.7 mm	550 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.50
Newark	Each	100	$ 9.40
		250	$ 7.83
		500	$ 7.61

Description

General part information

CXA2520 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA2520 White, Warm Square
