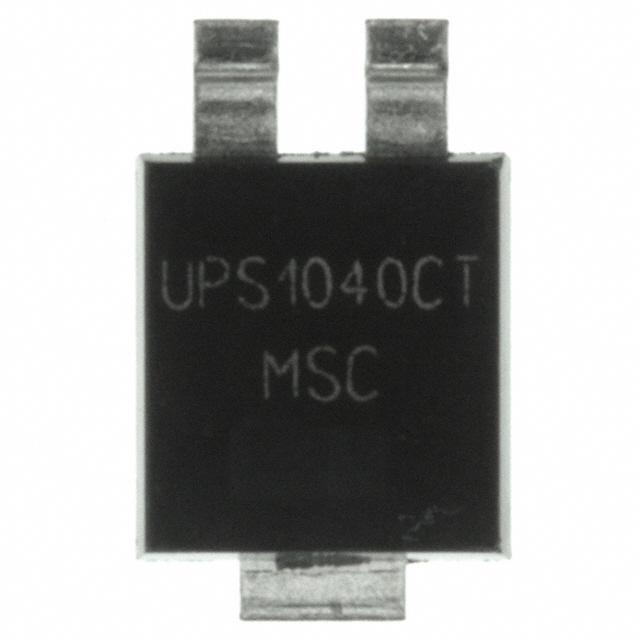

UPS1040CTE3

Obsolete

Microsemi Corporation

DIODE ARR SCHOT 40V POWERMITE3

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

DIODE ARR SCHOT 40V POWERMITE3

Technical Specifications

Parameters and characteristics for this part

Specification	UPS1040CTE3

Current - Average Rectified (Io) (per Diode)	10 A
Current - Reverse Leakage @ Vr	150 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Powermite®3
Speed	200 mA, 500 ns
Supplier Device Package	Powermite 3
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	570 mV

Part	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If	Speed	Package / Case	Supplier Device Package	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Diode Configuration
Microsemi Corporation UPS1040CTE3	10 A	150 µA	-55 °C	125 °C	570 mV	200 mA 500 ns	Powermite®3	Powermite 3	Surface Mount	40 V	Schottky	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 40 V 10A Surface Mount Powermite®3
