TMB-E4F2-1L1

Active

CarlisleIT

2.4(F)2-H,EL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

2.4(F)2-H,EL,FIELDREP

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-E4F2-1L1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Female Socket, Jack
Contact Termination	Compression
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	400 V

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Style	Connector Style	Mating Cycles	Housing Color	Insertion Loss	Frequency - Max [Max]	Features	Voltage Rating	Number of Ports	Center Contact Plating	Center Contact Material	Impedance	Contact Termination	Body Material	Shield Termination	Mounting Type
CarlisleIT TMB-E4F2-1L1	Female Socket Jack	-65 ░C	165 °C	OS-50	2.4 mm	APC-2.4	500	Silver	0.2 dB	50 GHz	Field Replaceable For Hermetically Sealed Pin	400 V	1	Gold	Beryllium Copper	50 Ohms	Compression	Stainless Steel	Screw	Board Edge End Launch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 38.50

General part information

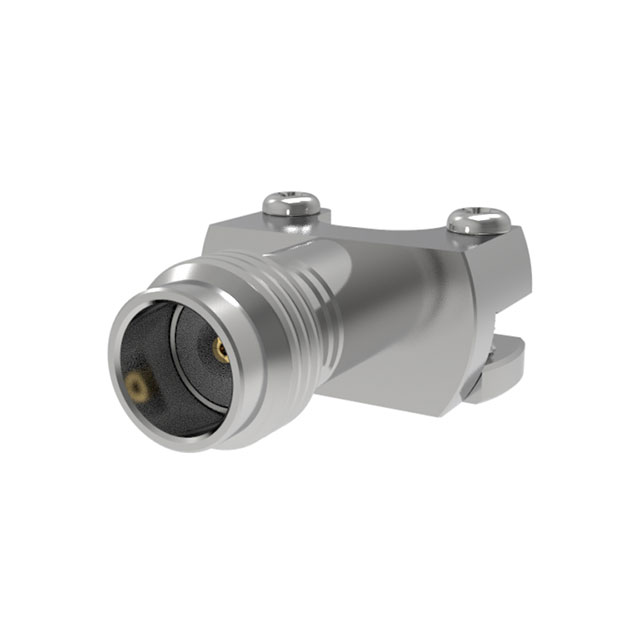

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
