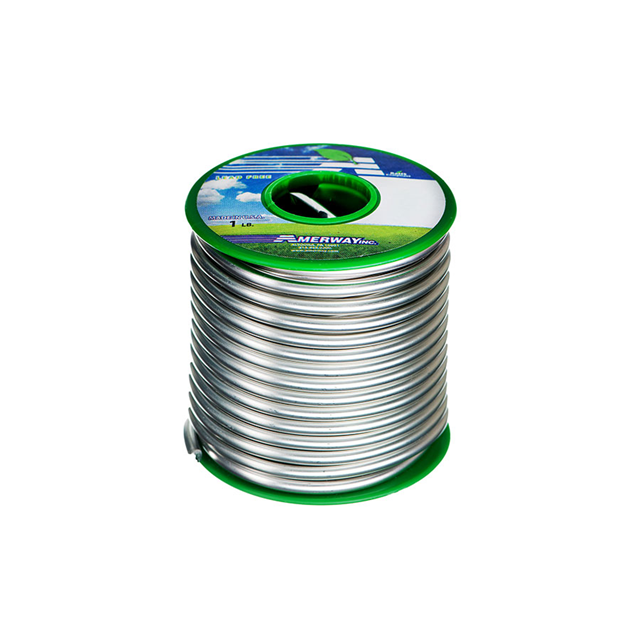

CWSN96.5AG3

Active

Amerway Inc

SN96.5AG3CU.5 WRAP3 .062 1# SPL

Search across all available documentation for this part.

Active

Amerway Inc

SN96.5AG3CU.5 WRAP3 .062 1# SPL

Technical Specifications

Parameters and characteristics for this part

Specification	CWSN96.5AG3

Composition	Sn96.5Ag3Cu0.5 (96.5/3/0.5)
Diameter [diameter]	0.062 in
Diameter [diameter]	1.57 mm
Flux Type	Rosin Activated (RA)
Form	Spool, 1 lb (454 g)
Melting Point [custom]	428 °F
Melting Point [custom]	220 °C
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	Room Temperature
Type	Wire Solder
Weight	453.59 g
Weight	1 lbs
Wire Gauge	13.5 AWG

Part	Weight	Weight	Wire Gauge	Storage/Refrigeration Temperature	Melting Point [custom]	Melting Point [custom]	Form	Shelf Life	Type	Flux Type	Diameter [diameter]	Diameter [diameter]	Shelf Life Start	Composition
Amerway Inc CWSN96.5AG3	453.59 g	1 lbs	13.5 AWG	Room Temperature	428 °F	220 °C	Spool 1 lb (454 g)	60 Months	Wire Solder	Rosin Activated (RA)	0.062 in	1.57 mm	Date of Manufacture	Sn96.5Ag3Cu0.5 (96.5/3/0.5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lead Free Rosin Activated (RA) Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 14 AWG Spool, 1 lb (454 g)
