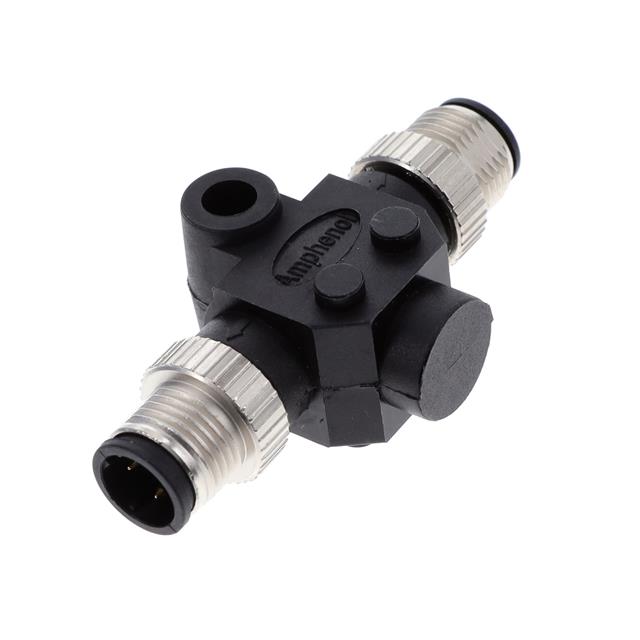

SD-040400-MM0-IS001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, I ADAPTOR, METAL, D CODING, 4A, 04 PINS, (END 1) MALE MALE, (END 2) MALE MALE, SCREW THREAD, IP68 ROH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SD-040400-MM0-IS001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, I ADAPTOR, METAL, D CODING, 4A, 04 PINS, (END 1) MALE MALE, (END 2) MALE MALE, SCREW THREAD, IP68 ROH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SD-040400-MM0-IS001

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins (2)
Current Rating (Amps)	4 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	4
Number of Positions (Convert To)	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shielding	Unshielded
Voltage Rating	250 VDC

SD-040400 Series

Part	Shielding	1st Connector Number of Positions	Cable Material	2nd Connector Type	Assembly Configuration	1st Connector Orientation	Ingress Protection	Cable Type	Color	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Number of Positions Loaded	Usage	1st Connector Mounting Type	1st Connector Gender	Length [x]	Length [x]	Voltage Rating	Convert To (Adapter End)	Orientation (Convert From)	Connector Style	Convert From (Adapter End)	Mounting Type	Orientation (Convert To)	Number of Positions (Convert From)	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions (Convert To)
Amphenol LTW SD-040400-MF0-TSA10	Unshielded	5	Polyvinyl Chloride (PVC)	Wire Leads	T-Adapter on One End	D	IP68 - Dust Tight Waterproof; NMEA 2000	Round	Black	M12	Plug Right Angle Receptacle Right Angle	All	Industrial Environments	Free Hanging (In-Line)	Female Sockets Male Pins
Amphenol LTW SD-040400-MM0-TSA10	Unshielded	4	Polyvinyl Chloride (PVC)	Wire Leads	T-Adapter on One End	D	IP68 - Dust Tight Waterproof; NMEA 2000	Round	Black	M12	Receptacle Right Angle (2)	All	Industrial Environments	Free Hanging (In-Line)	Male Pins
Amphenol LTW SD-040400-MF0-TSA05	Unshielded	5	Polyvinyl Chloride (PVC)	Wire Leads	T-Adapter on One End	D	IP68 - Dust Tight Waterproof; NMEA 2000	Round	Black	M12	Plug Right Angle Receptacle Right Angle	All	Industrial Environments	Free Hanging (In-Line)	Female Sockets Male Pins	1.64 ft	500 mm
Amphenol LTW SD-040400-MM0-IS001	Unshielded						IP68 - Dust Tight Waterproof											250 VDC	Male Pins (2)	Keyed	Distributor T-Shaped	Female Sockets	Free Hanging (In-Line)	Keyed	4	85 °C	-20 C	4 A	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.38
		10	$ 13.63
		100	$ 11.88
		1000	$ 9.30
Newark	Each	10	$ 12.06
		25	$ 11.07
		50	$ 9.88
		100	$ 9.09
		250	$ 8.83

Description

General part information

SD-040400 Series

Circular Connector Distributor T-Shaped 4/4 (2) Female Sockets/Male Pins (2) Free Hanging (In-Line)
