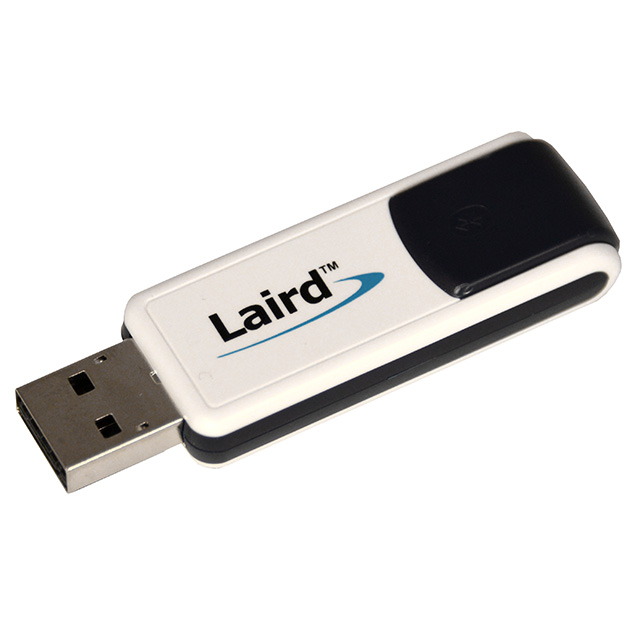

BL620-US

Obsolete

Ezurio LLC

BLE MOD USB DONGLE SMARTBASIC

Search across all available documentation for this part.

Obsolete

Ezurio LLC

BLE MOD USB DONGLE SMARTBASIC

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Interface	Modulation or Protocol	Frequency [Min]	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max)	Function	Power - Output	Sensitivity	Antenna Type	Current - Transmitting	Data Rate	Frequency	Protocol	Current - Receiving	Serial Interfaces	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	RF Family/Standard	Utilized IC / Part
Ezurio LLC BL620-US	General Purpose	USB	Bluetooth v4.0 Low Energy (BLE)	2.4 GHz	2.48 GHz	3.6 V	1.8 V	1 Mbps	Transceiver	4 dBm	-91 dBm
Ezurio LLC BL620-ST						3.6 V	1.8 V			4 dBm	-91 dBm	Antenna Not Included	10.5 mA	1 Mbps	2.4 GHz	Bluetooth v4.0	10.5 mA	I2C SPI UART	Module	85 °C	-40 °C	Surface Mount	Bluetooth	nRF51822
Ezurio LLC BL620-SA						3.6 V	1.8 V			4 dBm	-91 dBm	Integrated Chip	10.5 mA	1 Mbps	2.4 GHz	Bluetooth v4.0	10.5 mA	I2C SPI UART	Module	85 °C	-40 °C	Surface Mount	Bluetooth	nRF51822
Ezurio LLC BL620-US	General Purpose	USB	Bluetooth v4.0 Low Energy (BLE)	2.4 GHz	2.48 GHz	3.6 V	1.8 V	1 Mbps	Transceiver	4 dBm	-91 dBm
Ezurio LLC BL620-SC						3.6 V	1.8 V			4 dBm	-91 dBm	Antenna Not Included I-PEX MHF4	10.5 mA	1 Mbps	2.4 GHz	Bluetooth v4.0	10.5 mA	I2C SPI UART	Module	85 °C	-40 °C	Surface Mount	Bluetooth	nRF51822

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transceiver 2.4GHz ~ 2.48GHz Bluetooth v4.0, Low Energy (BLE) USB 1Mbps
