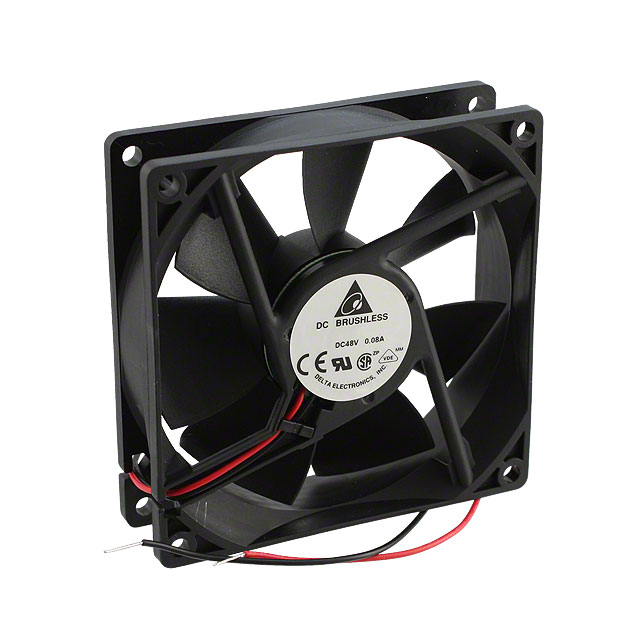

AFB0948L

Obsolete

Delta Electronics

FAN AXIAL 92X25.4MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X25.4MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Voltage - Rated [custom]	Termination	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Lifetime @ Temp.	Static Pressure	Static Pressure	Air Flow	Air Flow	Approval Agency	Material - Blade	Width [y]	Noise	Material - Frame	Weight	Weight	Fan Type	RPM	Current Rating (Amps)
Delta Electronics AFB0948HH	3.84 W	48 VDC	2 Wire Leads	28 V	56 VDC	70 °C	70 °C	-10 °C	-10 °C	Ball	70000 Hrs	0.221 in H2O	55 Pa	57.9 CFM	1.62 mł/min	CE CSA UL VDE	Plastic	25.4 mm	38 dB(A)	Plastic	99.34 g	0.219 lb	Tubeaxial	3200 RPM
Delta Electronics AFB0948L	2.4 W	48 VDC	2 Wire Leads	28 V	56 VDC	70 °C	70 °C	-10 °C	-10 °C	Ball	70000 Hrs	0.1 in H2O	24.9 Pa	37.1 CFM	1.04 mł/min	CE CSA UL VDE	Plastic	25.4 mm	25 dB(A)	Plastic	99.34 g	0.219 lb	Tubeaxial	2100 RPM	50 mA
Delta Electronics AFB0948L-B	2.4 W	48 VDC	2 Wire Leads	28 V	56 VDC	70 °C	70 °C	-10 °C	-10 °C	Ball	70000 Hrs	0.1 in H2O	24.9 Pa	37.1 CFM	1.04 mł/min	CE CSA UL VDE	Plastic	25.4 mm	25 dB(A)	Plastic	99.34 g	0.219 lb	Tubeaxial	2100 RPM	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 37.1 CFM (1.04m³/min) 2 Wire Leads
