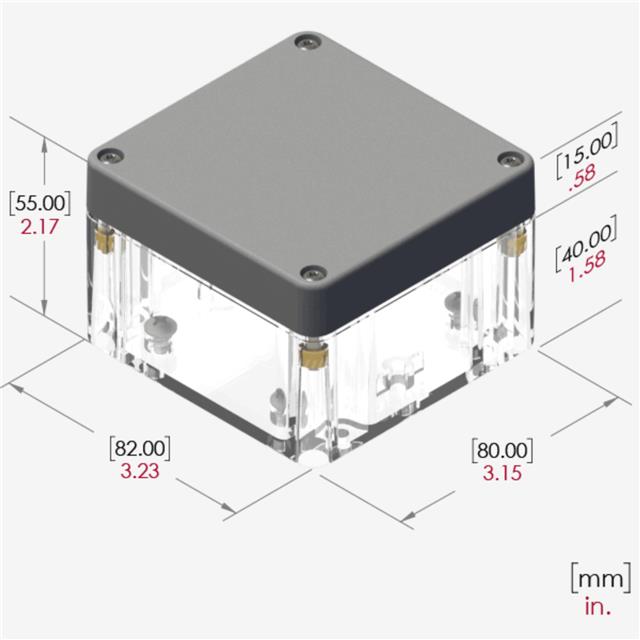

RB33P06G16C

Active

Serpac

BOX PLSTC CLR/GRAY 3.23" X 3.15"

Search across all available documentation for this part.

Active

Serpac

BOX PLSTC CLR/GRAY 3.23" X 3.15"

Technical Specifications

Parameters and characteristics for this part

Specification	RB33P06G16C

Area (L x W)	10.3 in²
Area (L x W)	66 cm²
Color	Clear, Gray Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	2.17 in
Height [z]	55.12 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	82.04 mm
Size / Dimension [x]	3.23 in
Size / Dimension [y]	80.01 mm
Size / Dimension [y]	3.15 in
Thickness	0.12 in
Thickness	3.05 mm

Part	Thickness	Thickness	Ratings	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Color	Material	Container Type	Design	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material Flammability Rating
Serpac RB33P06G16G	0.12 in	3.05 mm	IP67 NEMA 4	10.3 in²	66 cm²	2.17 in	55.12 mm	Gray	Plastic Polycarbonate	Box	Cover Included	82.04 mm	3.23 in	80.01 mm	3.15 in	UL94 V-0
Serpac RB33P06G16C	0.12 in	3.05 mm	IP67 NEMA 4	10.3 in²	66 cm²	2.17 in	55.12 mm	Clear Gray Cover/Door	Plastic Polycarbonate	Box	Cover Included	82.04 mm	3.23 in	80.01 mm	3.15 in	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.28

General part information

Box Plastic, Polycarbonate Clear, Gray Cover/Door Cover Included 3.230" L x 3.150" W (82.04mm x 80.01mm) X 2.170" (55.12mm)
