CD611616C

Unknown

Powerex Inc.

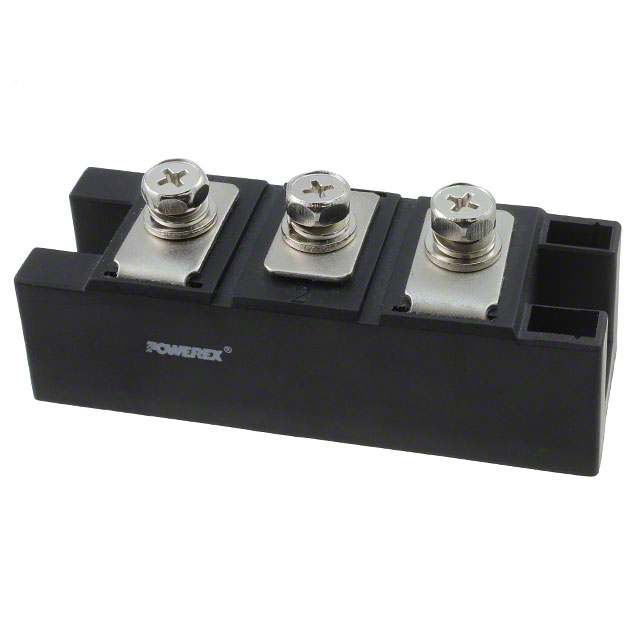

DIODE MODULE, 1.6 KV, 160 A, 1.56 V, DUAL SERIES, MODULE, 3 PINS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

CD611616C

Unknown

Powerex Inc.

DIODE MODULE, 1.6 KV, 160 A, 1.56 V, DUAL SERIES, MODULE, 3 PINS

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD611616C

Current - Average Rectified (Io) (per Diode)	160 A
Current - Reverse Leakage @ Vr	12 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Screw Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard

CD611616 Series

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Diode Configuration	Package / Case	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Average Rectified (Io) (per Diode)	Technology
Powerex Inc. CD611616C	Module	12 mA	1 Pair Series Connection	Module	Standard Recovery >500ns	200 mA	150 °C	-40 °C	Screw Mount	160 A	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 57.51
Newark	Each	1	$ 52.62

Description

General part information

CD611616 Series

The CD611616C is an isolated dual Diode Module designed for use in applications requiring rectification and isolated packaging. The device is isolated for easy mounting with other components on a common heat-sink. It is suitable for bridge circuits, AC and DC motor drives, welders, battery supplies and large IGBT circuit front end applications.
