09156123001

Active

HARTING Technology Group

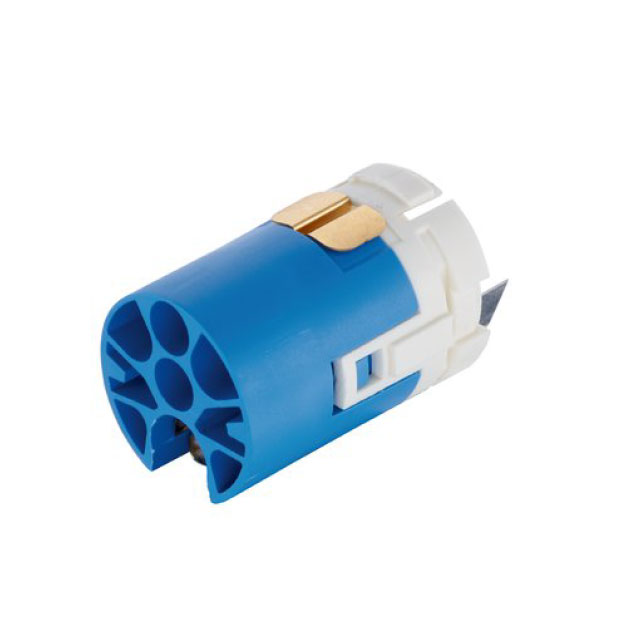

CIRCULAR CONNECTOR INSERT, HAN SERIES, 11 CONTACTS, PIN, CRIMP

Search across all available documentation for this part.

Active

HARTING Technology Group

CIRCULAR CONNECTOR INSERT, HAN SERIES, 11 CONTACTS, PIN, CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	09156123001

Contact Shape	Circular
Contact Type	Crimp
Housing Color	Blue
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Note	Note: Contacts Not Included; Insert Only, Requires Shell
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Size - Insert	M23-12
Shielding	Unshielded
Type	For Male Pins

Part	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Contact Type	Type	Insert Material	Housing Color	Note	Number of Positions	Shell Size - Insert	Contact Shape	Material Flammability Rating
HARTING Technology Group 09156123101	Keyed	125 °C	-40 °C	Unshielded	Crimp	For Female Sockets	Nylon Polyamide (PA)	Blue	Note: Contacts Not Included; Insert Only Requires Shell	12	M23-12	Circular	UL94 V-0
HARTING Technology Group 09156123001	Keyed	125 °C	-40 °C	Unshielded	Crimp	For Male Pins	Nylon Polyamide (PA)	Blue	Note: Contacts Not Included; Insert Only Requires Shell	12	M23-12	Circular	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (4 + 4 Data + 3 Power + PE) Position Circular Connector Insert
