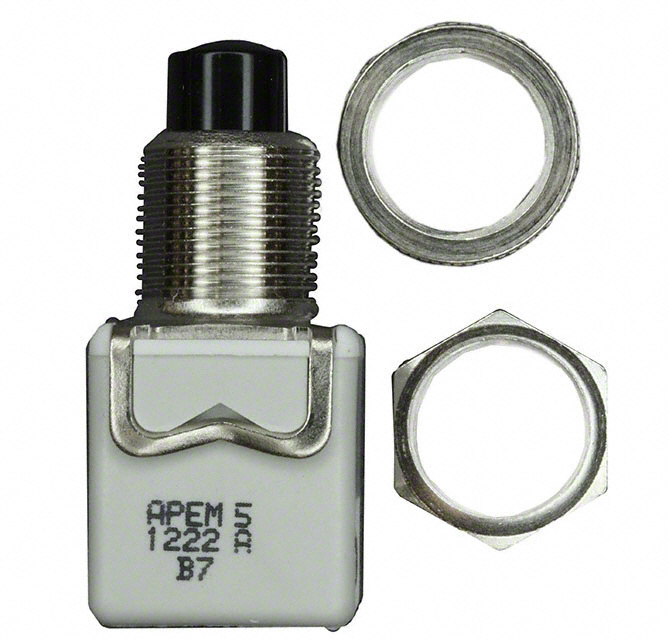

1222A2

Active

APEM

SWITCH PUSH SPST-NC 8A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPST-NC 8A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	1222A2

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 8 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Current Rating (Amps)	Mounting Type	Type	Termination Style	Switch Function	Voltage Rating - DC	Actuator Marking	Color - Actuator/Cap	Actuator Type	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Panel Cutout Dimensions [diameter]
APEM 1222A2	4 A 8 A	Panel Mount Rear	Standard	Screw Terminal	On-Mom	24 V	No Marking	Black	Round Plunger	125 V	SPST-NC	55 °C	-20 C	10000 Cycles	12.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 10.67

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
