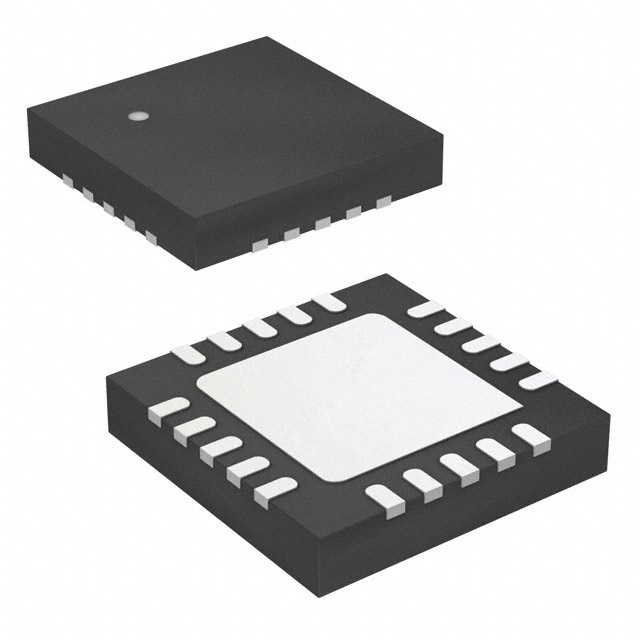

MP3385AGR-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC LED DRVR CTRL PWM 300MA 20QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC LED DRVR CTRL PWM 300MA 20QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP3385AGR-Z

Applications	Backlight
Current - Output / Channel [custom]	300 mA
Dimming	PWM, Analog, I2C
Frequency [Max]	900 kHz
Frequency [Min]	100 kHz
Internal Switch(s)	False
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)
Topology	Step-Up (Boost)
Type	DC DC Controller
Voltage - Output	80 V
Voltage - Supply (Max) [Max]	33 V
Voltage - Supply (Min) [Min]	4.5 V

Part	Mounting Type	Supplier Device Package	Dimming	Current - Output / Channel [custom]	Frequency [Min]	Frequency [Max]	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Max) [Max]	Applications	Number of Outputs	Voltage - Output	Type	Voltage - Supply (Min) [Min]	Package / Case	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]
MONOLITHIC POWER SYSTEMS (MPS) MP3385GR-P	Surface Mount	20-QFN (4x4)	Analog I2C PWM	300 mA	100 kHz	900 kHz	Step-Up (Boost)	-40 °C	125 ¯C	33 V	Backlight	4	80 V	DC DC Controller	4.5 V	20-VFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MP3385AGR-Z	Surface Mount	20-QFN (4x4)	Analog I2C PWM	300 mA	100 kHz	900 kHz	Step-Up (Boost)	-40 °C	125 ¯C	33 V	Backlight	4	80 V	DC DC Controller	4.5 V	20-VFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MP3385GF	Surface Mount	20-TSSOP-EP	Analog I2C PWM	300 mA	100 kHz	900 kHz	Step-Up (Boost)	-40 °C	125 ¯C	33 V	Backlight	4	80 V	DC DC Controller	4.5 V		0.173 in 4.4 mm	Exposed Pad	20-TSSOP
MONOLITHIC POWER SYSTEMS (MPS) MP3385AGR-P	Surface Mount	20-QFN (4x4)	Analog I2C PWM	300 mA	100 kHz	900 kHz	Step-Up (Boost)	-40 °C	125 ¯C	33 V	Backlight	4	80 V	DC DC Controller	4.5 V	20-VFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.06

General part information

LED Driver IC 4 Output DC DC Controller Step-Up (Boost) Analog, I2C, PWM Dimming 300mA 20-QFN (4x4)

Technical documentation and resources

No documents available
