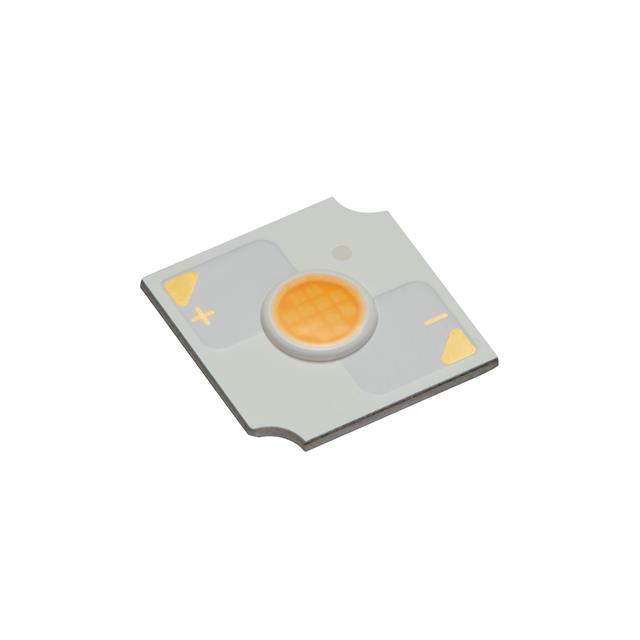

CLU7A3-0403E1-243H5X3
ActiveCitizen Finedevice Co Ltd
LED COB CLU7A3 WARM WHT SQ 2400K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLU7A3-0403E1-243H5X3
ActiveCitizen Finedevice Co Ltd
LED COB CLU7A3 WARM WHT SQ 2400K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLU7A3-0403E1-243H5X3 |
|---|---|
| CCT (K) | 2400 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 900 mA |
| Current - Test | 525 mA |
| Features | With Connector |
| Height [z] | 1.4 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 4.2 mm |
| Lumens/Watt @ Current - Test | 98 lm/W |
| Luminous Flux @ Current/Temperature | 672 lm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Voltage - Forward (Vf) (Typ) | 12.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.57 | |
| 54 | $ 3.49 | |||
| 108 | $ 3.29 | |||
| 540 | $ 2.93 | |||
| 1026 | $ 2.82 | |||
| 2052 | $ 2.72 | |||
Description
General part information
CLU7A3 Series
LED Lighting COBs Engines Modules Chip On Board (COB) CLU7A3 White, Warm Square
