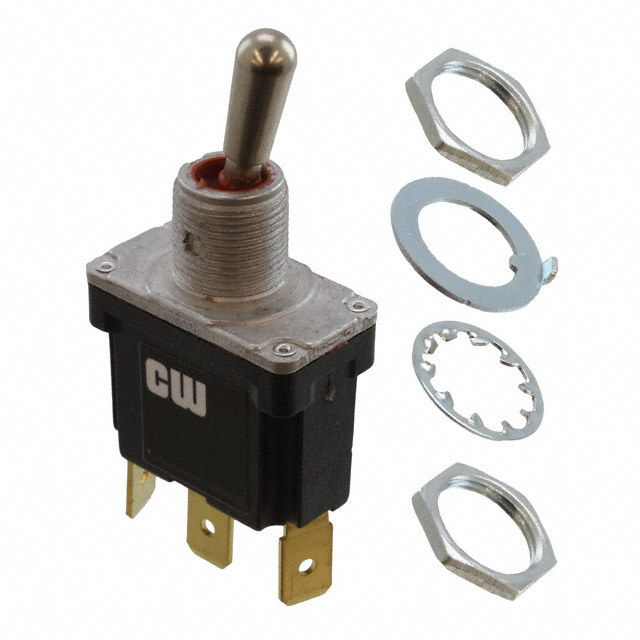

GTB-2B18

Active

CW Industries

SWITCH TOGGLE SPDT 12A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE SPDT 12A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GTB-2B18

Actuator Length [x]	16.2 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	12 A
Electrical Life	30000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Bushing Thread	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Ingress Protection	Switch Function	Termination Style	Actuator Material	Panel Cutout Dimensions [diameter]	Illumination	Circuit	Electrical Life	Current Rating (Amps)
CW Industries GTB-2B12	15/32-32	Standard Round	125 V	16.2 mm	IP68 - Dust Tight Waterproof	On-Off	Quick Connect - 0.250" (6.3mm)	Brass Nickel Plated	12 mm	Non-Illuminated	SPST	30000 Cycles	12 A
CW Industries GTB-2B13	15/32-32	Standard Round	125 V	16.2 mm	IP68 - Dust Tight Waterproof	On-On	Quick Connect - 0.250" (6.3mm)	Brass Nickel Plated	12 mm	Non-Illuminated	SPDT	30000 Cycles	12 A
CW Industries GTB-2B18	15/32-32	Standard Round	125 V	16.2 mm	IP68 - Dust Tight Waterproof	On-Mom	Quick Connect - 0.250" (6.3mm)	Brass Nickel Plated	12 mm	Non-Illuminated	SPDT	30000 Cycles	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Panel Mount
