A.85.A.101111

Active

TAOGLAS

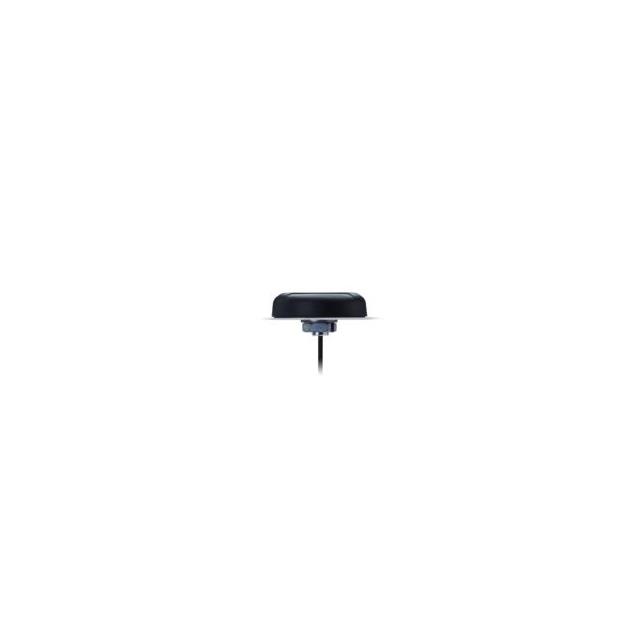

RF ANTENNA, 1.569 TO 1.605GHZ, GPS / GLONASS / GALILEO / BEIDOU, 4.5DBI, 50 OHM, RIGHT HAND CIRCULAR

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 1.569 TO 1.605GHZ, GPS / GLONASS / GALILEO / BEIDOU, 4.5DBI, 50 OHM, RIGHT HAND CIRCULAR

Technical Specifications

Parameters and characteristics for this part

Specification	A.85.A.101111

Antenna Type	Module
Applications	GLONASS, GNSS, GPS, Beidou, Galileo
Features	Filter, Cable - 1m, LNA
Frequency (Center/Band)	1.575 GHz, 1.587 GHz, 1.561 GHz, 1.176 GHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Frequency Range [Max]	1.563 GHz, 1.581 GHz, 1.587 GHz, 1.605 GHz, 1.186 GHz
Frequency Range [Min]	1.559 GHz, 1.166 GHz, 1.563 GHz, 1.569 GHz
Gain	0.52 dBi, 2.83 dBi, 2.72 dBi, 3.7 dBi
Height (Max) [Max] [z]	25.4 mm
Height (Max) [Max] [z]	1 in
Ingress Protection	IP65
Mounting Type	Screw Mount
Number of Bands [custom]	5
Power - Max [Max]	5 W
RF Family/Standard	Navigation

Part	Gain	Number of Bands [custom]	RF Family/Standard	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Ingress Protection	Mounting Type	Frequency (Center/Band)	Features	Applications	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Antenna Type	Power - Max [Max]
TAOGLAS A.85.A.101111	0.52 dBi 2.72 dBi 2.83 dBi 3.7 dBi	5	Navigation	2 GHz	1 GHz	UHF	1.186 GHz 1.563 GHz 1.581 GHz 1.587 GHz 1.605 GHz	1.166 GHz 1.559 GHz 1.563 GHz 1.569 GHz	IP65	Screw Mount	1.176 GHz 1.561 GHz 1.575 GHz 1.587 GHz	Cable - 1m Filter LNA	Beidou Galileo GLONASS GNSS GPS	25.4 mm	1 in	Module	5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Module SMA Male Screw Mount
