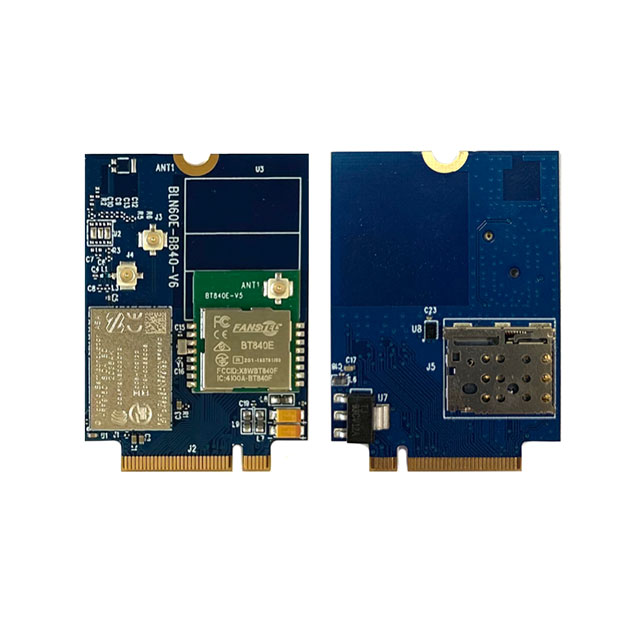

LN60E840E
ActiveFanstel Corp.
RF TXRX MOD BT CELL U.FL CARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LN60E840E
ActiveFanstel Corp.
RF TXRX MOD BT CELL U.FL CARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LN60E840E |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 125 kbps |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Card Edge |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 23 dBmW |
| Protocol | Thread, Zigbee®, Bluetooth v5.2, LTE-M/NB-IoT, Bluetooth v5.1 |
| RF Family/Standard | Cellular, 802.15.4, Bluetooth |
| Sensitivity | -108 dBm |
| Serial Interfaces | GPIO, UART, USB |
| Utilized IC / Part | BT840E, NRF9160 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 64.24 | |
| 15 | $ 59.90 | |||
| 30 | $ 55.56 | |||
| 90 | $ 52.09 | |||
Description
General part information
LN60 Series
802.15.4, Bluetooth, Cellular Bluetooth v5.1, Bluetooth v5.2, LTE-M/NB-IoT, Thread, Zigbee® Transceiver Module Antenna Not Included, U.FL Card Edge
Documents
Technical documentation and resources
