AP62200Z6-EVM

Active

Diodes Inc

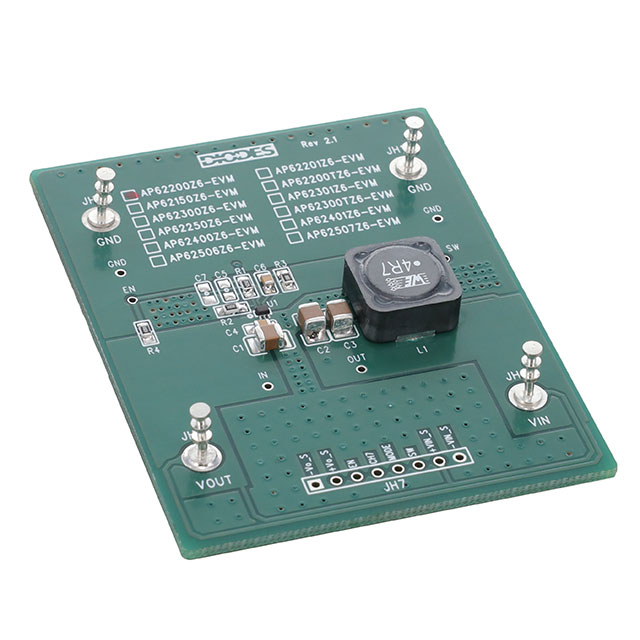

EVAL BOARD FOR AP62200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP62200Z6-EVM

Active

Diodes Inc

EVAL BOARD FOR AP62200

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP62200Z6-EVM

Board Type	Fully Populated
Current - Output	2 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP62200
Voltage - Input [Max]	18 V
Voltage - Input [Min]	4.2 V
Voltage - Output	5 V

AP62200 Series

4.2V TO 18V INPUT, 2A LOW IQ SYNCHRONOUS BUCK CONVERTER, PFM/PWM

Part	Regulator Topology	Main Purpose	Outputs and Type	Outputs and Type	Current - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Frequency - Switching	Voltage - Output [Min]	Voltage - Output [Max]	Utilized IC / Part	Supplied Contents	Voltage - Output
Diodes Inc AP62200TWU-EVM	Buck	DC/DC Step Down	Non-Isolated	1	2 A	Fully Populated	18 V	4.2 V	740 kHz	0.8 V	7 V	AP62200T	Board(s)
Diodes Inc AP62200Z6-EVM	Buck	DC/DC Step Down	Non-Isolated	1	2 A	Fully Populated	18 V	4.2 V				AP62200	Board(s)	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.39

Description

General part information

AP62200 Series

The AP62200/AP62201/AP62200T is a 2A, synchronous buck converter with a wide input voltage range of 4.2V to 18V. The device fully integrates a 90mΩ high-side power MOSFET and a 65mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.
